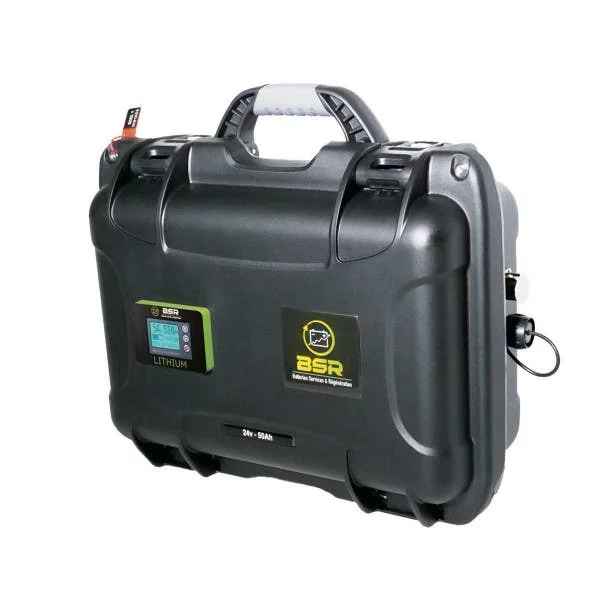

The BSR Prestige Lithium Battery Case 2450 is a high-end, waterproof lithium battery designed for intensive use in navigation and leisure activities. Encased in an IP67-rated waterproof transport case, this battery is engineered to power electric motors and electronic equipment efficiently.
- Advanced Lithium Technology: Utilizes LifePO4 cells, offering enhanced safety and longevity.
- Dual Outputs:
- Motor Power Output: Provides a robust connection for electric motors.
- Regulated 12V 20A Output: Supplies power for sounders and other electronic accessories.
- LED Display: Monitors and displays critical battery parameters, including:
- Battery temperature
- Voltage
- Charge level
- Low voltage alarm
- Discharge indicator showing remaining autonomy, capacity, usage count, and instantaneous consumption
- Self-Pressure Valve: Integrated into the NANUK case, it equalizes atmospheric pressure differences, preventing water ingress while allowing air passage.
- Durability: Resistant to shocks, vibrations, sand, and sea conditions, ensuring reliable performance in various environments.
Technical Specifications
- Voltage: 24V
- Capacity: 50Ah
- Energy Storage: 1280Wh
- Discharge Cycles: Over 2,000 cycles at 100% depth of discharge (DoD); over 3,000 cycles at 50% DoD
- Discharge Rate: 2C, up to 100A maximum
- Charge Rate: 1C, up to 50A maximum
- Charge Voltage: 29.2V
- Discharge Cutoff Voltage: 21V
- Ideal Charging Temperature: 0°C to 45°C
- Operating Temperature Range: Discharge: -25°C to +55°C
- Fire Safety Standard: UL94 VO
- Waterproof Rating: IP67
Materials
- Battery Cells: 3.2V LifePO4
- Enclosure: NANUK waterproof transport case
- Connectors:
- Motor connector: 60A waterproof plug
- Sounder connector: 20A waterproof plug
- Pressure Valve: Integrated self-pressure valve by NANUK
Dimensions
- Battery Case: 401mm (L) x 307mm (W) x 173mm (H)
- Weight: 16.5 kg
Compatibility Information
This battery is specifically designed to power electric motors and electronic accessories commonly used in navigation and leisure activities. It is particularly suitable for anglers using float tubes and kayaks, providing sufficient power for extended fishing sessions.
Additional Details
- Warranty: 4-year warranty, reflecting the high-quality components and design
- Assembly and Testing: Each battery is assembled and tested by BSR technicians to ensure flawless performance upon receipt and over time
- Safety Features: Equipped with a Battery Management System (BMS) to intelligently manage and maintain each battery unit, preventing overcharging and excessive discharging, thereby extending the battery's lifespan and monitoring its condition
