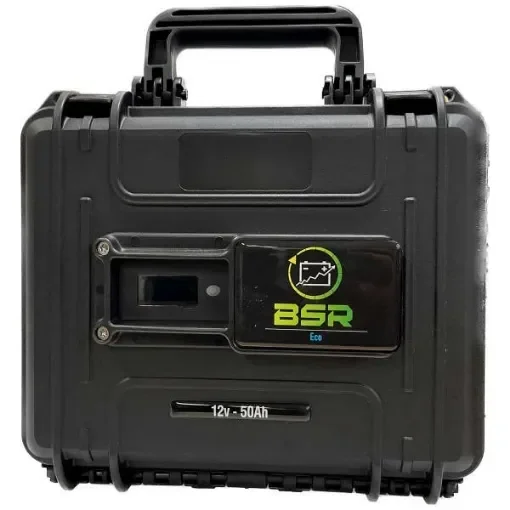

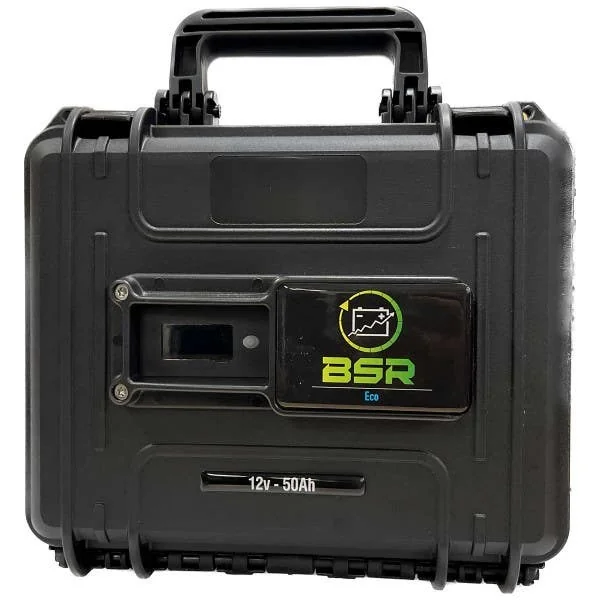

The BSR Eco Lithium Battery Case 1250 is a high-end 12V 50Ah lithium battery designed for intensive use in navigation and leisure activities, particularly for powering electric motors. Encased in a waterproof transport case with an IPX7 rating, it offers durability and ease of transport. The battery utilizes advanced LiFePO4 (Lithium Iron Phosphate) technology, ensuring safety and longevity.
- Waterproof Design: Encased in a waterproof transport case with an IPX7 rating, providing protection against water ingress.
- Advanced Lithium Technology: Equipped with LiFePO4 cells, offering enhanced safety and a longer lifespan compared to traditional lithium batteries.
- Dedicated Motor Output: Features a single quick and waterproof 50A Anderson connector for electric motor power supply.
- LCD Display: Displays battery voltage, temperature, and remaining autonomy percentage, allowing for real-time monitoring.
- Integrated Battery Management System (BMS): Protects against overcharging, excessive discharging, and ensures optimal performance.
- High Cycle Life: Capable of over 2,000 charge/discharge cycles at 100% depth of discharge (DoD) and over 3,000 cycles at 50% DoD.
- Lightweight and Robust: Weighs 6.5 kg, making it easy to handle and transport.
Technical Specifications:
- Type: 12V - 50Ah - 640 Wh
- Voltage: 12.8V
- Charging Voltage: 14.6V
- Discharge Voltage: 10.5V
- Cell Type: 3.2V - 50Ah LiFePO4
- Discharge Cycle Life: 2,000 cycles at 100% DoD; 3,000 cycles at 50% DoD
- Discharge Rate: 2C (100A max)
- Charge Rate: 1C (up to 50A)
- Ideal Charging Temperature: 0°C to 45°C
- Operating Temperature Range: -25°C to +55°C
- Dimensions: 258 x 243 x 167 mm
- Weight: 6.5 kg
Materials:
- Cell Type: LiFePO4 (Lithium Iron Phosphate)
- Case Material: Polypropylene
- Connectors: Stainless steel screws
Compatibility Information:
Designed specifically for powering electric motors, the BSR Eco Lithium Battery Case 1250 is ideal for use with various electric motor models, including those from Minn Kota. It is not suitable for powering sounders or other electronic devices directly; however, it can simultaneously power other 12V equipment such as sounders, live probes, Ethernet switches, bilge pumps, and live wells.
