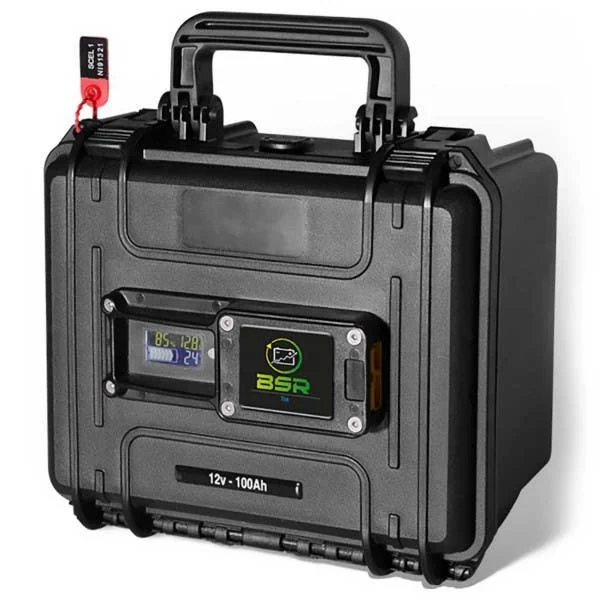

The BSR Eco Lithium Battery Case 12100 is a high-performance, portable power solution designed for intensive use in navigation and leisure activities. This 12V 100Ah lithium battery offers a reliable and efficient energy source for electric motors, sounders, and other electronic devices on board.
- Waterproof Design: Encased in an IPx7 waterproof carrying case, the battery is protected against immersion, making it suitable for marine environments.
- Advanced Lithium Technology: Utilizes LiFePO4 cells, known for their safety, longevity, and thermal stability.
- Integrated Battery Management System (BMS): The 60A BMS ensures intelligent management, protecting against overcharging, deep discharge, and short circuits, thereby extending the battery's lifespan.
- LCD Display: Provides real-time information on battery voltage, temperature, and remaining autonomy percentage, allowing users to monitor performance easily.
- High Discharge Capacity: Supports up to 200A (2C) discharge, accommodating high-power devices and ensuring consistent performance.
- Extended Cycle Life: Offers over 2,000 charge/discharge cycles at 100% depth of discharge and over 3,000 cycles at 50%, surpassing traditional lead-acid batteries.
Technical Specifications
- Nominal Voltage: 12.8V DC
- Nominal Capacity: 100Ah
- Energy Output: 1280Wh
- Dimensions: 258 x 243 x 167 mm
- Weight: 10 kg
- Discharge Voltage Range: 10.5V to 14.6V
- Charging Voltage: 14.6V
- Discharge Current: Up to 200A (2C)
- Charging Temperature Range: 0°C to 45°C
- Discharge Temperature Range: -25°C to +55°C
- Warranty: 2 years
Materials
- Cells: Class A LiFePO4 cells
- Busbars: Copper
- Screws: Stainless steel
Compatibility Information
The BSR Eco Lithium Battery Case 12100 is specifically designed to power electric motors and is ideal for use in float tubes, kayaks, and dinghies. Its single Anderson 50A motor output ensures a secure and efficient connection for electric motor applications.
