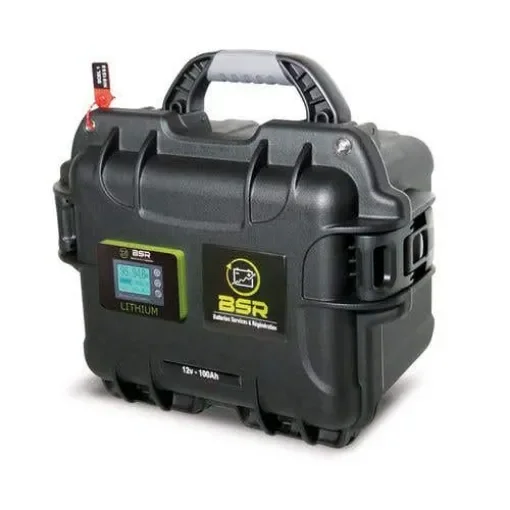

The BSR Prestige LifePo4 Gen2 12V 100Ah Lithium Battery Case is a high-performance, portable power solution designed for intensive use in navigation, fishing, and leisure activities. Encased in a waterproof transport case with an IP67 rating, this battery offers both durability and convenience.
- Advanced Lithium Technology: Utilizes LifePO4 cells, providing enhanced safety and longevity compared to traditional lithium batteries.
- Dual Outputs:
- Motor Power Output: Equipped with a 60A waterproof connector for electric motors.
- Sounder Output: Features a 20A waterproof connector for fishfinders and electronic accessories.
- Integrated Battery Management System (BMS): Protects against overcharging, deep discharge, overcurrent, and short circuits, ensuring optimal performance and extending battery life.
- LED Display: Provides real-time information on battery temperature, voltage, charge level, and low-voltage alarm.
- Discharge Indicator: Displays remaining autonomy in percentage, remaining capacity in Ampere/hour, remaining usage countdown, instantaneous consumption in Amperes and Watts, and voltage.
- Self-Pressure Valve: NANUK's integrated valve equalizes atmospheric pressure differences, allowing air passage while preventing water ingress.
- Durability: Resistant to shocks, vibrations, sand, and sea conditions, making it suitable for various marine environments.
Technical Specifications:
- Voltage: 12.8V
- Capacity: 100Ah (1280Wh)
- Dimensions: 318 x 249 x 203 mm
- Weight: 11 kg
- Discharge Cycles: Approximately 2,000 cycles at 100% depth of discharge (DoD); up to 3,000 cycles at 50% DoD.
- Charging Voltage: 14.6V
- Maximum Discharge Voltage: 10.60V
- Ideal Charging Temperature: 0°C to 45°C
- Discharge Temperature Range: -25°C to +55°C
- Fire Standard: UL94 VO
- Waterproof Rating: IP67
Materials:
- Battery Cells: LifePO4
- Enclosure: Waterproof transport case with IP67 rating
- Connectors: 60A waterproof motor connector and 20A waterproof sounder connector
Compatibility Information:
This battery is designed to power electric motors and electronic accessories such as fishfinders, sound systems, VHF radios, and bilge pumps. It is suitable for use in boats, float tubes, and kayaks, providing reliable power for extended periods.
