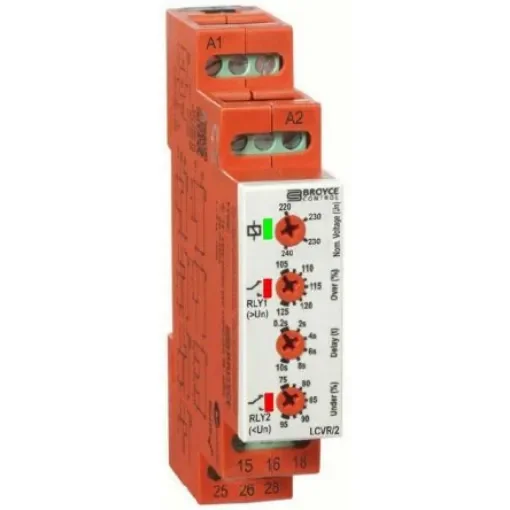

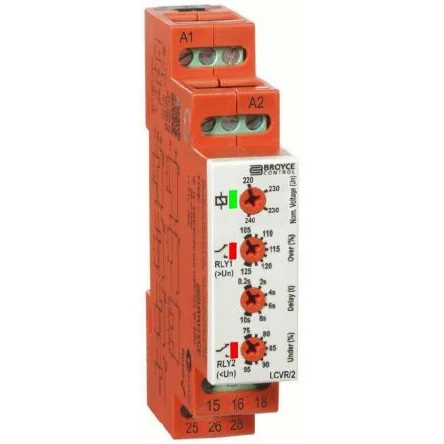

Broyce Control Voltage Monitoring Relay, 1 Phase, SPDT, Maximum of 315 V, DIN Rail - LCVR/2 230V
Ensure reliable voltage monitoring with Broyce's compact SPDT relay for under and over voltage protection.
Manufacturer part number: LCVR/2 230V
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
UL Certification. LCVR/2 Under and Over Voltage plus Time Delay. Broyce Controls L-Series signal conditioners use a QR barcode marking method allowing direct access to all technical data sheets, ensuring correct information is always at your finger tips!. Features and Benefits. Compact 17.5 mm DIN Rail housing. Microprocessor based. True R.M.S. monitoring. Selectable nominal voltages to suit most popular single phase supply voltages. Monitors own supply and detects if the set Under or Over voltage trip levels are exceeded. Adjustments for Under and Over voltage trip levels. Adjustment for time delay. Independent relay outputs - Under voltage monitoring / Over voltage monitoring. 2 x SPDT relay output 5A. Green LED indication for supply status. Red LED relay status indication
