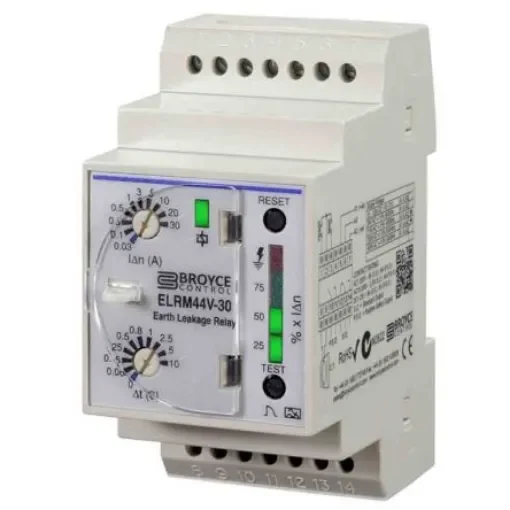

Broyce Control Earth Leakage Relay, 50Hz Frequency, 30A Leakage, SPDT, SPNO Output - ELRM44V-30 12-125V DC
Detects leakage currents with adjustable trip levels for enhanced electrical safety.
Manufacturer part number: ELRM44V-30 12-125V DC
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
This product is used in conjunction with an external Core Balance Current Transformer (CBCT) and will detect residual sinusoidal alternating and pulsating direct currents. An adjustable trip level and time delay allows the product to be set according to the type of installation to be protected. When the level of leakage current being monitored exceeds the set trip level, the unit will trip. Typically, the product is used in conjunction with an external switching device (i.e. contactor, shunt trip). An auxiliary supply is required to power this product.Type A - Earth Leakage Relay Selectable Trip level (0.03 - 30A) and Time delay (0 - 10s) Local (and optional remote) Test/Reset buttons Isolated Auxiliary supply 1 x SPDT/1 x SPNO Relay outputs 44mm wide, DIN Rail mount
