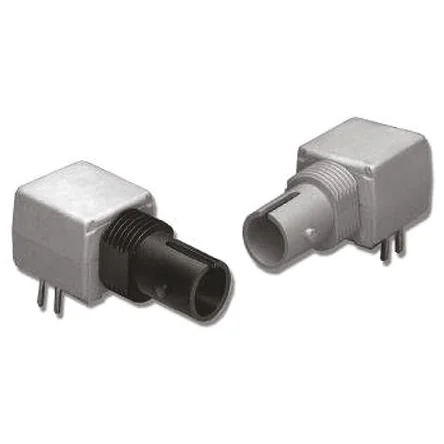

Broadcom HFBR-1414TZ, 160MBd Fibre Optic Transmitter 865nm, Round ST Connector, 27.2 x 12.7 x 10.2mm

Maximum Data Rate = 160MBd
Connector Shape = Round
Typical Rise Time = 6.5ns
Typical Fall Time = 6.5ns
Peak Wavelength = 865nm
Number of Pins = 8
Dimensions = 27.2 x 12.7 x 10.2mm
Connector Type = ST
Height = 10.2mm
Length = 27.2mm
Width = 12.7mm

HFBR-0400TZ Series Miniature Link Components. The HFBR-x4xxTZ series, from Avago Technologies, are miniature link components with the threaded ST port option. They come with 5.1mm (0.2 inch) of 3/8-32 UNEF-2A threads on the port. Components with the threaded ST port have the same high electrical, optical and mechnical performance as that of the base components. The HFBR-x4xxTZ devices are suitable for panel mounting to chassis walls with a maximum thickness of 2.8mm (0.11 inch) when using nuts and washers from the kit.. Features of the HFBR-x4xxTZ series: - Threading enables ST styled port components to be panel mounted - Compatible with current ST multimode connectors
