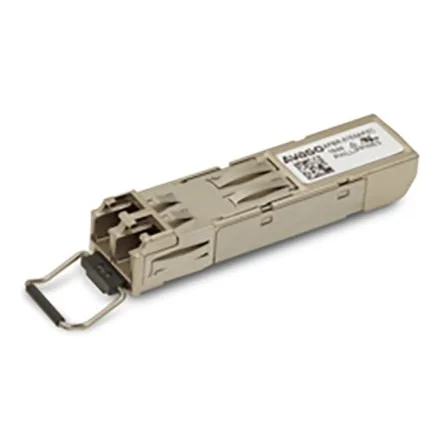

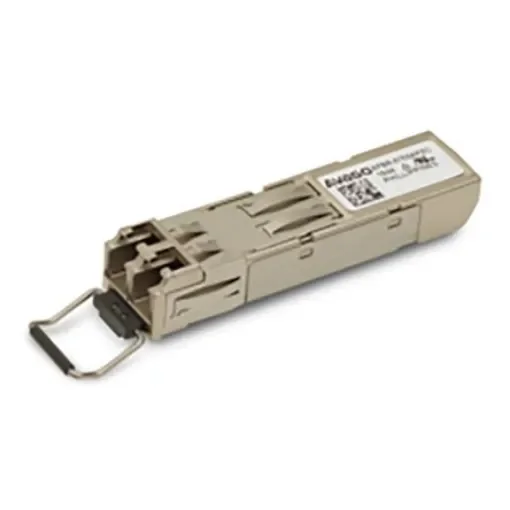

Broadcom AFBR-57E6APZC Fibre Optic Transceiver, SFP Connector, 125MBd 1380nm 20-Pin SFP

Maximum Data Rate = 125MBd
Connector Shape = Rectangular
Transmitter Typical Rise Time = 1ns
Transmitter Typical Fall Time = 1ns
Receiver Jitter at Maximum Data Rate = 1ns
Transmitter Jitter at Maximum Data Rate = 0.6ns
Number of Pins = 20
Mounting Type = Surface Mount
Dimensions = 13.8 x 57.8 x 13mm
Connector Type = SFP
Wavelength of Peak Sensitivity = 1380nm
Height = 13mm
Length = 13.8mm
Series = AFBRmm

The Broadcom AFBR-57E6APZC is a low power, 125MBd small form-factor pluggable (SFP) fiber optic transceiver module device designed for Fast Ethernet and fiber distributed data interface (FDDI) applications. The device has an LC duplex connector optical interface and a digital diagnostic monitoring interface (DMI).The AFBR-57E6APZC is specially designed for harsh environmentsHarsh environment tested according to EIA-364-65B Class IIIA and ASTM B 117 LC duplex connector optical interface Operates with 50/125-µm and 62.5/125-µm multimode fiber Compatible with 100Base-FX version of IEEE802.3u Single +3.3V power supply +3.3V TTL LOS output Squelched receiver outputs
