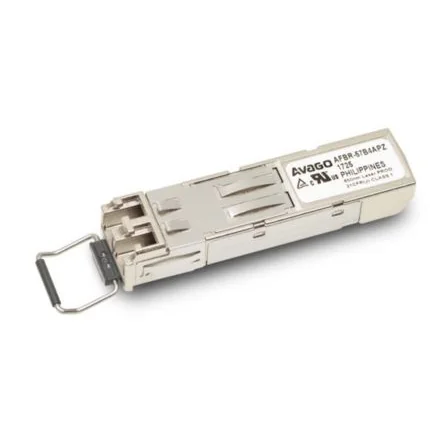

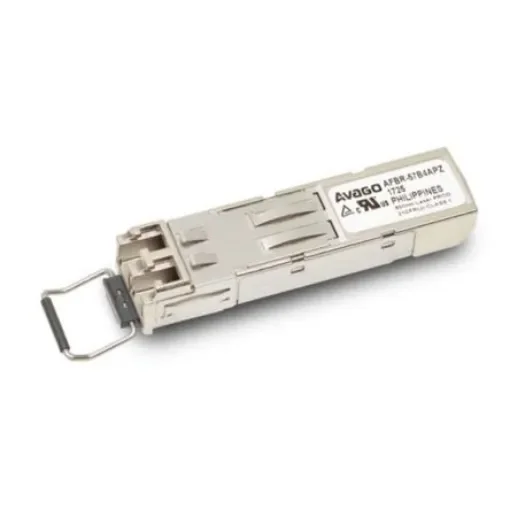

Broadcom AFBR-57B4APZ Fibre Optic Transceiver, SFP Connector, 50MBd, 865nm 20-Pin SFP

Maximum Data Rate = 50MBd
Connector Shape = Rectangular
Transmitter Typical Rise Time = 0.5ns
Transmitter Typical Fall Time = 0.3ns
Number of Pins = 20
Mounting Type = Surface Mount
Dimensions = 13.8 x 57.8 x 13mm
Connector Type = SFP
Peak Transmitter Wavelength = 865nm
Height = 13mm
Length = 13.8mm
Series = AFBRmm

The SFP transceiver provides system designers the ability to implement DC-50 MBaud data transmission over 2 km with (62.5 µm/125 µm) multimode fibers. The transceiver supports LC duplex connector and is lead free, RoHS compliant. Using the 2-wire serial interface defined in the SFF-8472 MSA, the AFBR-57B4APZ provides real-time information on module temperature, transmitter supply voltage and receiver average input power.Data rate support from DC to 50 MBaud Single 3.3V power supply Manufactured in an ISO 9001 certified facility 850 nm VCSEL transmitter Link Distance up to 2 km with 62.5 µm/125 µm multimode fiber Low current and low power dissipation Hot pluggable SFP connector Compatible with SFP MSA specification Class 1 FDA IEC60825-1 laser safety compliant Operating temperature –40°C to +85°C Excellent EMI and EMC behavior Integrated 850 nm VCSEL and driver IC with LVTTL input logic transmitter Integrated PIN diode and digitalizing I
