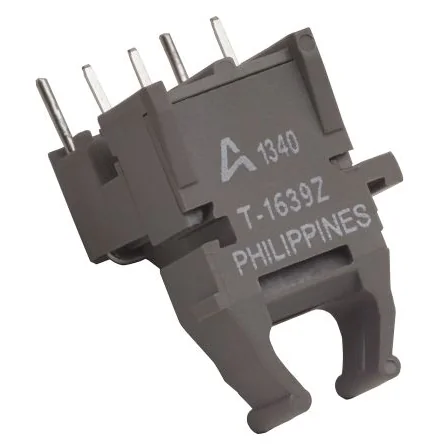

Broadcom AFBR-1639Z, 50MBd Fibre Optic Transmitter 685nm, Square Fiber Optic Connector, 18.29 x 12.19 x 18.8mm
High-speed 50MBd fibre optic transmitter with 685nm wavelength for reliable data communication.
Manufacturer part number: AFBR-1639Z
Mounting Type = Through Hole
Dimensions = 18.29 x 12.19 x 18.8mm
Connector Type = Fiber Optic
Length = 18.29mm
Width = 12.19mm
Series = Versatile Link
AFBR-16xxZ Series Fibre Optic Transmitters. The AFBR-16xxZ transmitter, from Avago Technologies, makes use of a 650nm light emitting diode (LED) source with integrated optics and driver IC for efficient joining with a 1mm polymer optical fibre (POF). The AFBR-16xxZ input is also compatible with TTL logic families. The 3-pin transmitter is packaged in the Versatile Link housing which allows them to be interlocked (N-plexed together) to optimize space and to provide dual connections with the duplex connectors.. The AFBR-16xxZ transmitter and AFBR-26x4Z/25x9Z receivers operate any signal from DC to: 50MBd at up to 50m with 1mm POF, 10MBd at up to 200m 50MBd at up to 120m with 200µm Plastic-Clad Silica (PCS)
