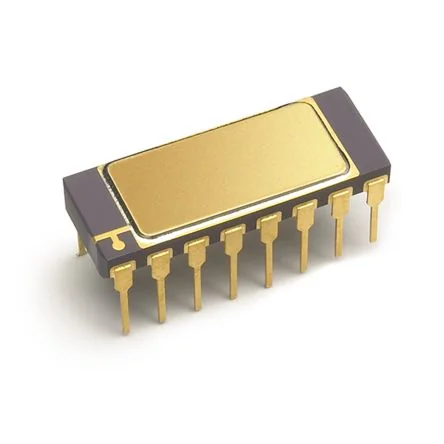

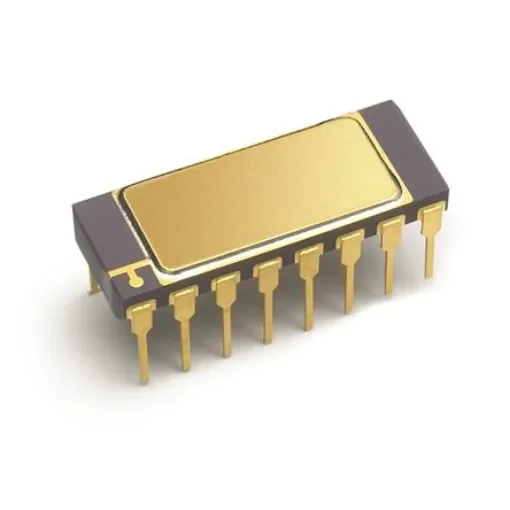

Broadcom, 6N134 DC Input Transistor Output Dual Optocoupler, Surface Mount, 16-Pin DIP

Mounting Type = Surface Mount
Output Device = Transistor
Maximum Forward Voltage = 1.9V
Number of Channels = 2
Number of Pins = 16
Package Type = DIP
Input Current Type = DC
Typical Rise Time = 35ns
Maximum Input Current = 20 mA
Isolation Voltage = 1.5 kV dc
Logic Output = Yes
Minimum Current Transfer Ratio = 100%
Series = 6N134

Broadcom OptocouplerThe Broadcom optocoupler is a 6N134 series DC input transistor output dual optocoupler. It is capable of operation and storage over the full military temperature range and can be purchased as either a commercial product or with full MIL-PRF-38534 class level H or K testing and from the appropriate DLA drawing.Features and Benefits• 1500VDC withstand test voltage • 2500VDC withstand test voltage for HCPL-565x high radiation immunity 6N137, HCPL-2601, HCPL-2630/31 function compatibility reliability data TTL circuit compatibility • CMR: > 10,000V/s typical • Dual marked with device part number and DLA standard microcircuit drawing (SMD) • Five hermetically sealed package configurations performance guaranteed over full military • high-speed is 10Mbd typical • Manufactured and tested on a MIL-PRF-38534 certified line QML-38534, class H and K • Maximum forward voltage is 1.9V • Maximum input current is 20mA • Minimum current transfer ratio is 100% • Temperature ranges between -55°C and 125°CApplications• Harsh industrial environments • Isolated input line receiver • Isolated output line driver • Isolation for computer, communication, and test equipment systems • Line receiver • Logic ground isolation • Military and aerospace high reliability systems • T
