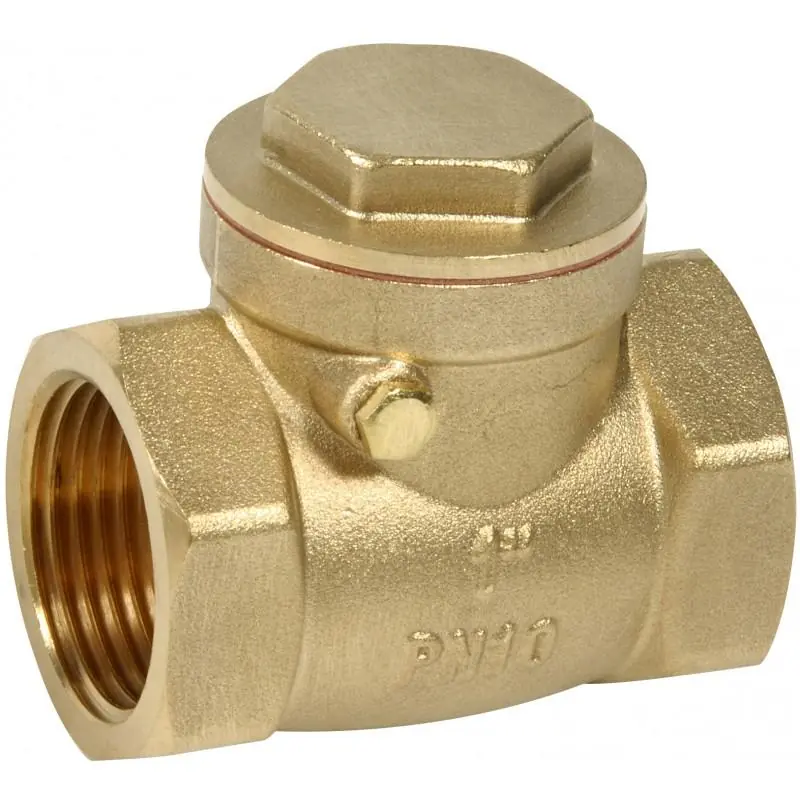

Key Features:
- Female connection with BSP thread.
- Suitable for horizontal or vertical mounting with upward fluid flow.
- Constructed from CW617N brass, known for its durability and resistance to corrosion.
- Designed to prevent backflow, ensuring unidirectional fluid movement.
Technical Specifications:
- Material: CW617N brass.
- Thread Type: BSP (British Standard Pipe).
- Mounting Orientation: Can be installed horizontally or vertically with upward fluid flow.
- Temperature Range: Typically operates within a range of -20°C to +120°C, depending on the specific design and application.
- Pressure Rating: Generally rated for pressures up to 1.6 MPa (16 bar).
Materials:
- Body and Swing Check: CW617N brass, offering strength and resistance to corrosion.
- Seat: PTFE (Polytetrafluoroethylene), providing a tight seal and chemical resistance.
Dimensions:
- Size: 3/8 inch.
- Length: Approximately 75 mm.
- Height: Around 52.1 mm.
- Width: Approximately 23 mm.
Compatibility Information:
- Compatible with water and other compatible fluids.
- Suitable for use in both horizontal and vertical installations with upward fluid flow.
Additional Details:
- The valve's design ensures minimal pressure drop and efficient flow control.
- Ideal for applications where backflow prevention is critical.
