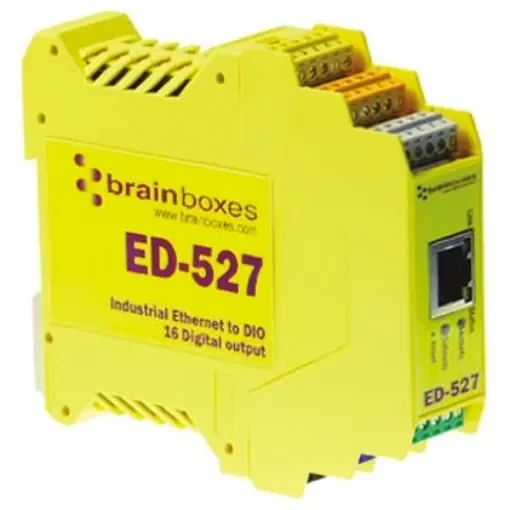

Brainboxes Ethernet Media Converter - ED-527

Brainboxes Ethernet to Digital I/O Output ConverterThe Brainboxes Ethernet to digital I/O output converter is a state-of-the-art device with 16 non-isolated digital output channels. This device can be controlled over TCP/IP using the Modbus TCP protocol or simple ASCII commands. It can be configured and secured from a web browser and can be installed as a COM port on a Windows PC for complete backward compatibility, essential for legacy applications. It offers robust and intelligent control side devices that provide the interface to systems on the 24VDC factory floor environment, commonly referred to as process side. The outputs are good for driving hot and cold resistive loads, capacitive loads, and inductive loads. It is especially suited for loads with high inrush currents such as cold bulbs/lamps and motors.Features and Benefits16 digital outputs and an RS485 gateway port Control any output from TTL to high voltage, high current industrial devices Factory floor process control and automation Gateway Port for NuDAM/ADAM modules Integrated DIN rail mount Only 22.6mm wide Easy wire feature with removable screw terminal blocks Supports simple ASCII or industry-standard Modbus TCP LED Status indication Operating temperature ranges between -30°C and 80°C Software APIs for visual basic, C#, and more Easy to use interface Input supply 5VDC to 30VDC Drives high current and high voltage loads Ideal for inductive, capacitive and resistive loadApplicationsControl and switching of AC and DC motors Fans Relays drivers Pumps Voltage regulator LEDs and bulbs Air conditioning Heaters and solenoidsCertificationsCE
