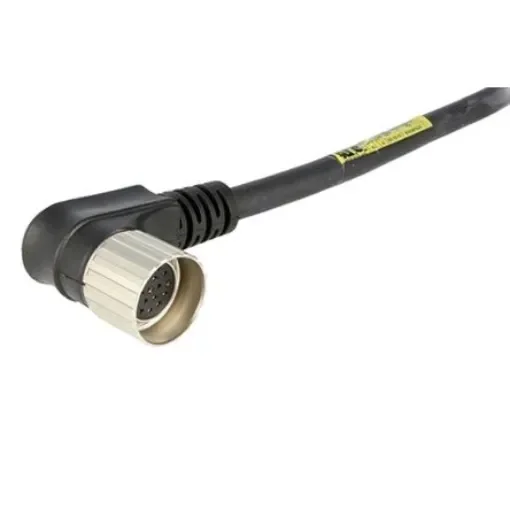

Brad from Molex Right Angle Female 19 way M23 to Unterminated Sensor Actuator Cable, 15m - 1200945031

Series = 120094
Number of Cores = 19
Sheath Colour = Blackm
Connector 1 Gender = Female
Connector 2 = Unterminated
Shielded/Unshielded = Unshielded
Voltage Rating = 63 V ac/dc
IP Rating = IP67
Maximum Operating Temperature = +90°C

K0x30xxxxxxxx are for 4 port Distribution Boxes K0x00xxxxxxxx are for 8 port Distribution Boxes K0xx00xxxxxxx have straight M23 connectors K0xx01xxxxxxx have 90° M23 connectors. Brad® M23 Signal Single-Ended Moulded Female Cordsets. Brad® M23 signal single-ended moulded female cordsets with black PUR jacketed cables. These Brad® M23 signal cordsets have an M23 connector at one end and a pigtail cable at the other and are available in straight (K02100, K03000) or right angle (K02101, K03001) configurations. The connector bodies of these Brad® M23 cordsets are made from TPU with a nickel plated brass coupling nut and gold plated copper contacts. These moulded cordsets are IP67, NEMA 6 rated.
