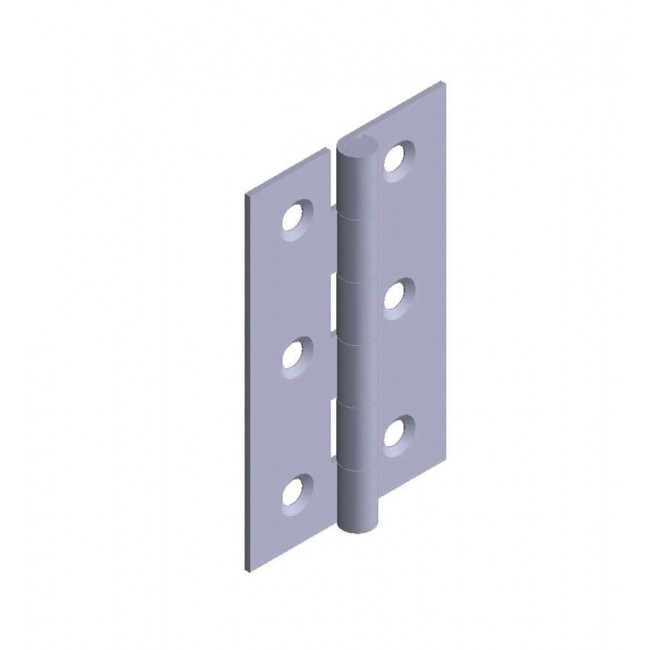

The Bouvet 6488-080-040 is a high-quality rectangular hinge designed for doors, measuring 80 mm in length and 45 mm in width. Crafted from stainless steel, it offers durability and resistance to corrosion, making it suitable for various applications. The hinge features a rolled knot design, providing a secure and discreet pivot point for the door. It is countersunk to ensure a flush fit when installed.
- Material: Stainless Steel
- Design: Rolled Knot Hinge
- Countersunk: Yes
Technical Specifications
- Length (A): 80 mm
- Width (B): 45 mm
- Thickness (c): 4 mm
- Pin Diameter (d): 1.2 mm
- Screw Hole Diameter (Ø of screw): 3.5 mm
- Countersink Diameter (Ø of countersink): 6 mm
Materials
Stainless Steel A2: Contains approximately 18% chromium and 8% nickel, offering high corrosion resistance and good heat resistance.
Dimensions
- Length: 80 mm
- Width: 45 mm
- Thickness: 4 mm
- Pin Diameter: 1.2 mm
- Screw Hole Diameter: 3.5 mm
- Countersink Diameter: 6 mm
Compatibility Information
This hinge is suitable for doors with a thickness of 4 mm and is designed to be mounted on the outside of the door and frame. The rolled knot design ensures a secure and discreet pivot point, enhancing both functionality and aesthetics.
