Key Features:
- Designed for solvent cement jointing, ensuring a secure and leak-proof connection.
- Suitable for various applications, including factories, swimming pools, aquaculture, agriculture, and domestic use.
- WRAS approved, indicating suitability for potable water systems.
Technical Specifications:
- Material: PVC-U (Unplasticized Polyvinyl Chloride)
- Manufacturing Standards: WRAS, DIN-8063, ISO9001, ISO14001
- Jointing Process: Solvent cement socket ends
- Maximum Working Pressure: 10 bar
- Operating Temperature Range: 0°C to 60°C
Materials:
- Constructed from high-quality PVC-U, known for its durability and resistance to corrosion.
Dimensions:
- Outer Diameter (OD): 16mm
- Socket Depth (D): 22.7mm
- Overall Length (L): 33mm
- Width Across Flats (WAF): 20.6mm
- Socket Diameter (SD): 14.3mm
Compatibility Information:
- Compatible with 16mm PVC pressure pipes and spigot fittings.
- Not compatible with imperial PVC pressure pipes or fittings.
Additional Details:

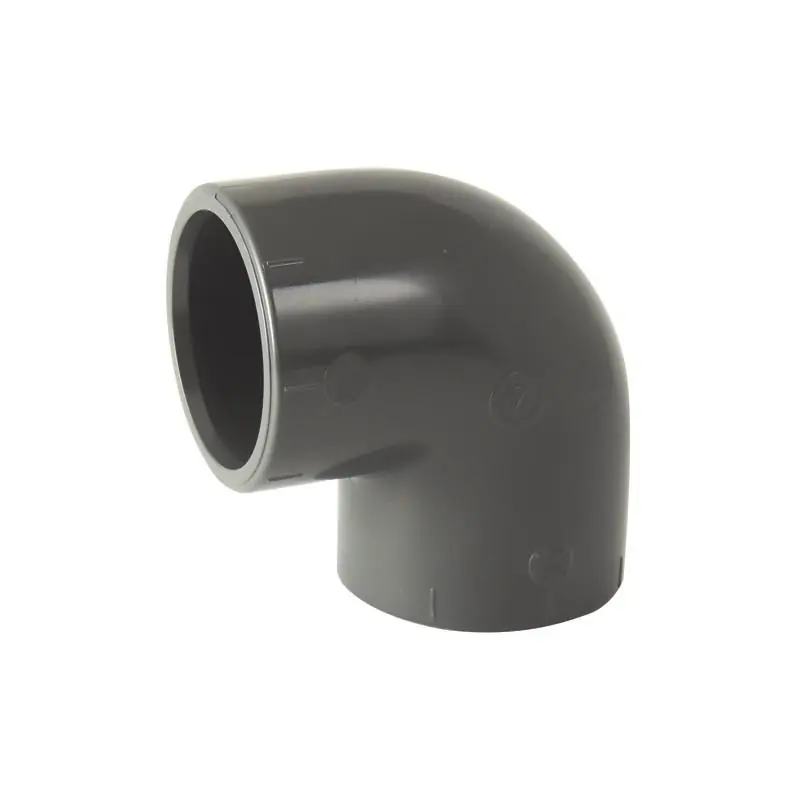

- Ideal for applications requiring a 90° change in direction in PVC piping systems.
- Not suitable for compressed air or other gases under pressure.
