- Key Features:

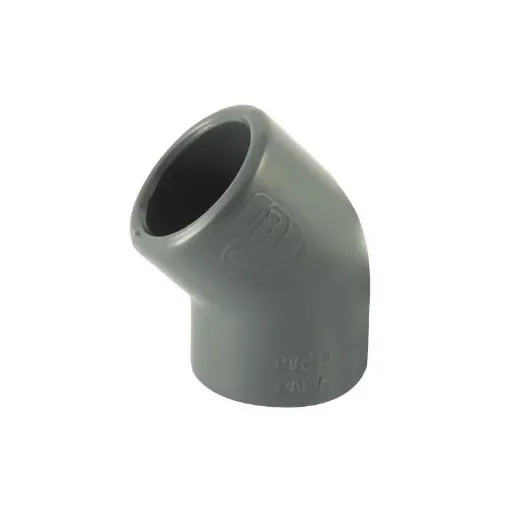

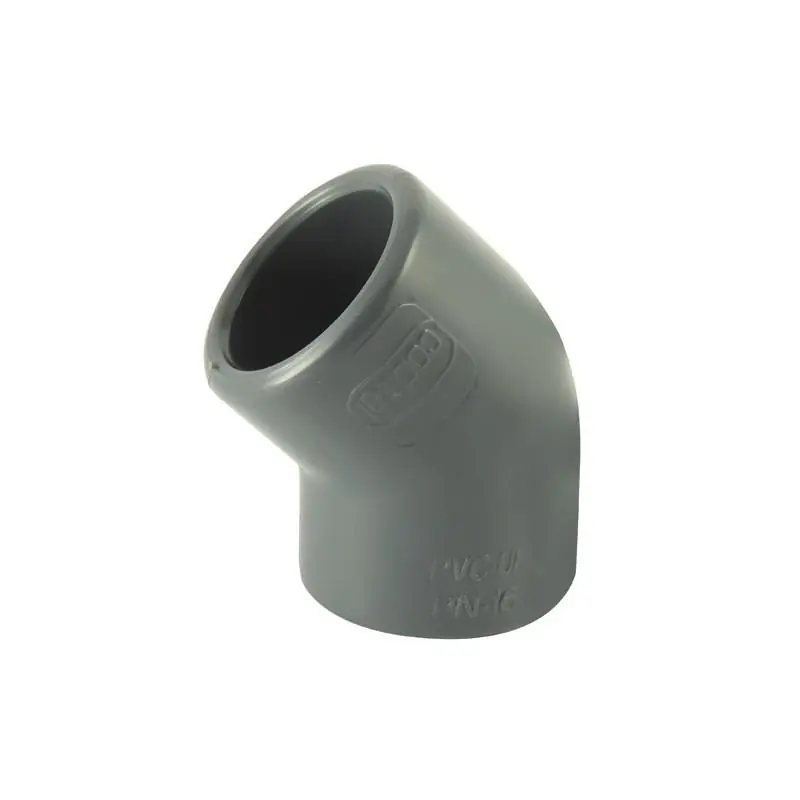

- Designed to connect two 16mm PVC pipes at a 45° angle.
- Suitable for solvent cement jointing.
- WRAS approved, indicating suitability for potable water applications.
- Manufactured in compliance with DIN-8063 and ISO9001 standards.
- Technical Specifications:
- Material: PVC (Polyvinyl Chloride)
- Manufacturing Standards: WRAS, DIN-8063, ISO9001, ISO14001
- Jointing Process: Solvent cement socket ends
- Maximum Working Pressure: 10 bar
- Operating Temperature Range: 0°C to 60°C
- Dimensions:
- A (Overall Length): 30mm
- B (Socket Depth): 16mm
- C (Socket Diameter): 21mm
- D (Elbow Radius): 37.5mm
- E (Wall Thickness): 14.3mm
- Compatibility Information:
- Compatible with 16mm PVC pressure pipes and spigot fittings.
- Not compatible with imperial PVC pressure pipes or fittings.
- Pipes or spigot fittings measuring 16mm outer diameter can be solvent welded into the ends of this 45° elbow.
- Additional Details:
- Ideal for applications such as factories, swimming pools, aquaculture, agriculture, and domestic water features.
- Not suitable for use with compressed air or gas.
