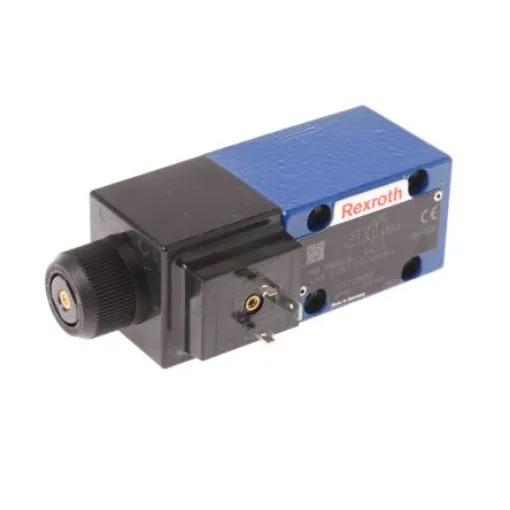

Bosch Rexroth, R900551704 Solenoid Actuated Directional Control Valve, CETOP 3, D, 110V ac
Reliable solenoid actuated directional control valve for efficient hydraulic systems.
Manufacturer part number: R900551704
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Number of Positions = 2
Number of Ports = 4-way
CETOP Mounting = CETOP 3
Power Supply Voltage = 110V ac
Solenoid Type = Double
Manufacturer Series = 6X
Spool Type = D
Maximum Flow Rate = 60L/min
Maximum Operating Pressure = 350bar
Maximum Operating Temperature = +50°C
Minimum Operating Temperature = -20°C
Actuation Type = Solenoid
Take care to prevent pressure intensification in single rod cylinders. Solenoid Operated Directional Spool Valves, CETOP 3, Size 6. 6X Series direct operating, spring return and detent directional control spool valves. Solenoid operated by a 24Vdc or 110Vac power supply Porting Pattern to CETOP 3 size 6 for subplate mounting Wet pin dc or ac removable solenoids can be rotated through 90° to facilitate installation Connections to DIN 24 340 Form A6 ISO 4401-AB-03-4-A Emergency hand operation Seal kit available separately Coils can be replaced without releasing any fluid Replacement solenoid coils 24Vdc and 110Vac are available separately
