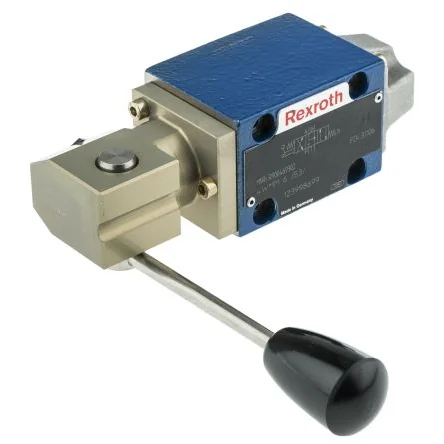

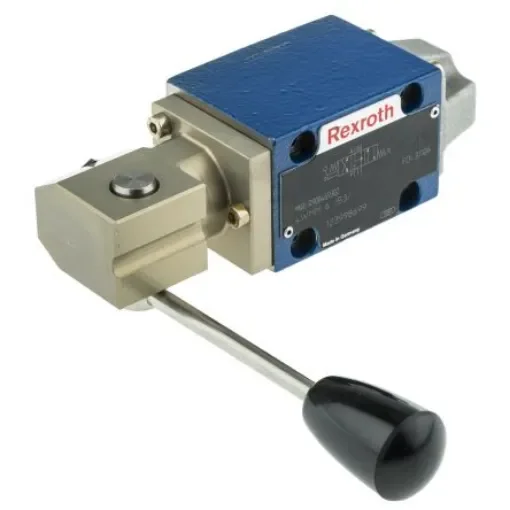

Bosch Rexroth, R900469302 Lever Actuated Directional Control Valve, CETOP 3, J

Number of Positions = 3
Number of Ports = 4-way
CETOP Mounting = CETOP 3
Manufacturer Series = 5X
Valve Direction Type = 4-Way/3 Position
Spool Type = J
Maximum Flow Rate = 60L/min
Maximum Operating Pressure = 160 (Port T) bar, 315 (Port A/B/P) bar
Maximum Operating Temperature = +80°C
Minimum Operating Temperature = -30°C
Lever Operation = Spring Return
Actuation Type = Lever

Care should be taken to prevent pressure intensification in single rod cylinders. Lever Operated Directional Valves. Manually operated directional control spool valves. Porting is to CETOP 3 size 6, for subplate mounting Maximum working pressure 315 bar Maximum flow rate 60 l/min Four spool options are available with a choice of spring return or a detent feature With detent the valve is held in the selected control position, with spring return the spool will return to its original position when the operating lever is released Valve fixing screws are M5 (not included) Weight approx. 1.4 kg
