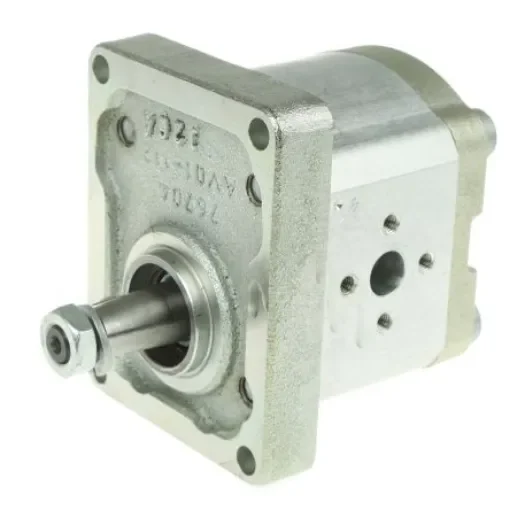

Bosch Rexroth Hydraulic Gear Pump 0510425043, 8cm³

Maximum Operating Pressure = 280 bar
Minimum Rotational Speed = 700rpm
Manufacturer Series = AZP
Maximum Rotational Speed = 4000rpm
Body Dimensions = 92.5 x 87 x 112mm
Weight = 3.3kg
Body Height = 112mm
Body Width = 87mm

Maximum permissible degree of contamination of pressure fluid to NAS 1638, Class10. To achieve this, we recommend a filter with a minimum retention rate of B ;sub>20 ;/sub> =100. To ensure a long service life; filtration to NAS 1638, Class 9 is recommended - this is achievable with a filter retention rate of B ;sub>10 ;/sub>=100. Self Aspirating External Gear Pump, 1:8 Tapered Shaft. New principle for the housing sealing, giving long housing service life Long service life for seals, even at maximum temperature Plain bearing for high loads Monoblock bearing Simple and robust design New principle of hydrostatic side clearance compensation
