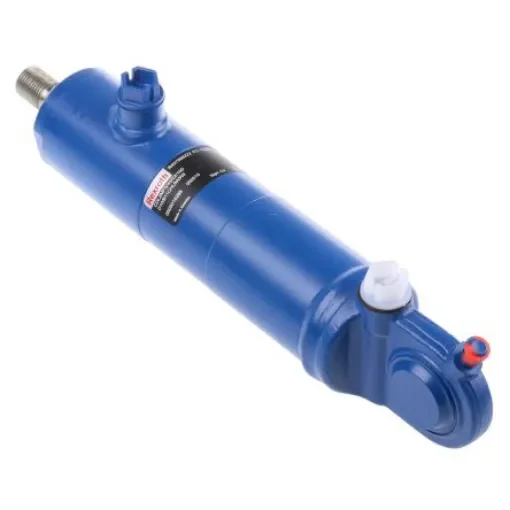

Bosch Rexroth Fixed Hydraulic Cylinder 100mm Stroke, R987155261

Stroke Length = 100mm
Bore = 40mm
Pull Force = 14.02kN
Manufacturer Series = 1X
Closed Length = 290mm
Extended Length = 390mm
Flow Rate Out = 7.5L/min
Flow Rate In = 5.3L/min
Maximum Operating Pressure = 160 bar
Weight = 850g

Cleanliness - Maximum degree of contamination of the hydraulic fluid to NAS 1638 class 10. In order to achieve a longer service life, we recommend use of a filtration element with a minimum retention rate of B ;sub>10 ;/sub> = 75. 32-63mm Bore Hydraulic Cylinders. Carbon steel body Recommended hydraulic medium: Mineral oil based fluids NBR (Nitrile)/Polyurethane seals 240 bar Static Proof Pressure Hydraulic fluid operating temperature range: -20 to +80°C 160 bar working pressure
