Bosch Rexroth 0.8m Long Aluminium, Steel Round Shaft, 16mm Shaft Diam. , Hardness 60HRC, h6 Tolerance - R101401600, 800 MM
High precision Bosch Rexroth open linear shaft, ideal for demanding applications with excellent rigidity.
Manufacturer part number: R101401600, 800 MM
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Shaft Diameter = 16mm
Length = 0.8m
Material = Aluminium, Steel
Type = Open Linear Shaft
Hardness = 60HRC
Tolerance = h6

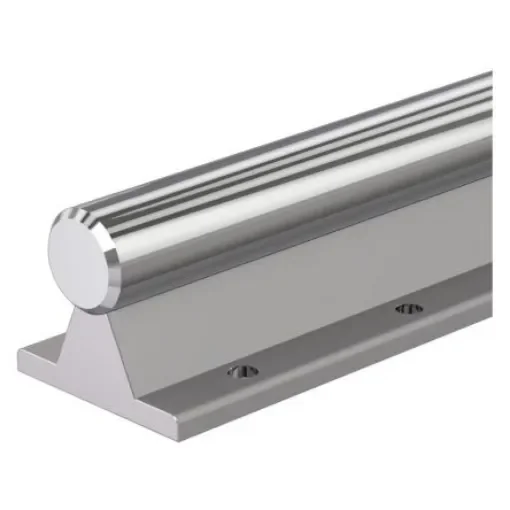

Precision steel shaft with ready-mounted aluminium shaft support rails, flanged, extremely high height toleranceFor use with open Linear Bushings For long guides or high loads where self-supporting shafts cannot be used due to shaft warping Unlimited length when using interconnecting shafts Support rails for various requirements Additional degrees of freedom in circumferential direction compared to profiled guide rails. For applications where other linear guides tend to warp due to imprecise substructure Shaft support rail material: Aluminium Combined with Linear Sets, these shaft support rails can be used to create linear guides with very low height. Extra rigidity. Carefully adapting the support rail to the Linear Bushing size produces the ideal pressure angle for fitting the shaft which, along with the large fastening bolts, ensures extra rigidity.
