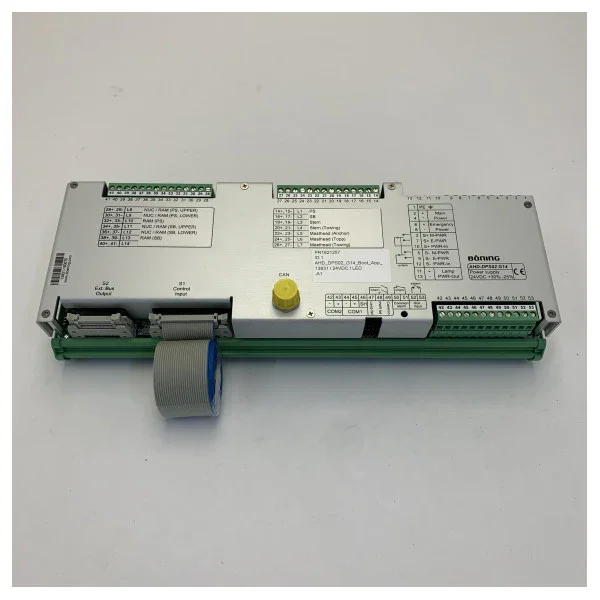

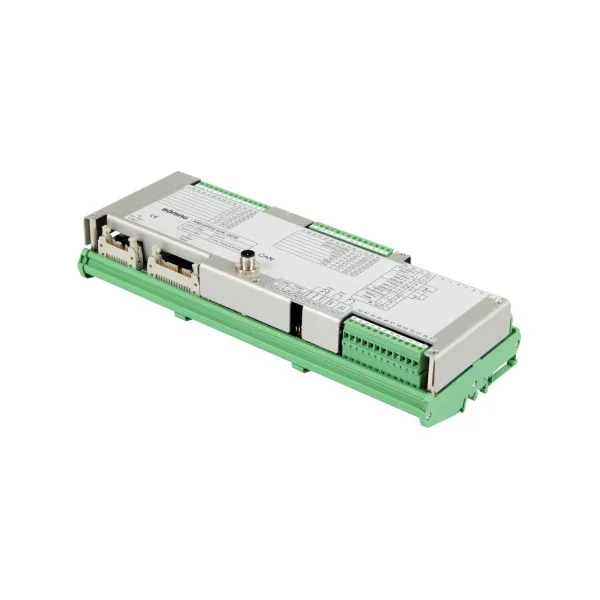

Boening Base Module AHD-DPS02G14 LED Navigation Light Control Module

The Boening Basis Module AHD-DPS02G14 is the core of a reliable and advanced navigation and signal light control and monitoring system for maritime applications. This microprocessor-controlled device is essential for the safe operation of your vessel and meets the stringent requirements of classification societies such as GL and LR.

???? Key Features

• Basic Control for 14 Lights: The AHD-DPS02G14 provides control and monitoring for 14 lamp circuits (lights), the minimum configuration.
• Modular Expandable: The system is flexible and can be expanded with up to four expansion modules (AHD-DPS02 A07), increasing the total number of lamp circuits to be monitored to 42.
• Suitable for LED and Conventional: The module is compatible with both conventional incandescent bulbs and LED navigation lights.
• Maintenance-Free and Short-Circuit Proof: The input channels are short-circuit proof and maintenance-free (no fuses that need to be replaced after a short circuit), which increases operational reliability.

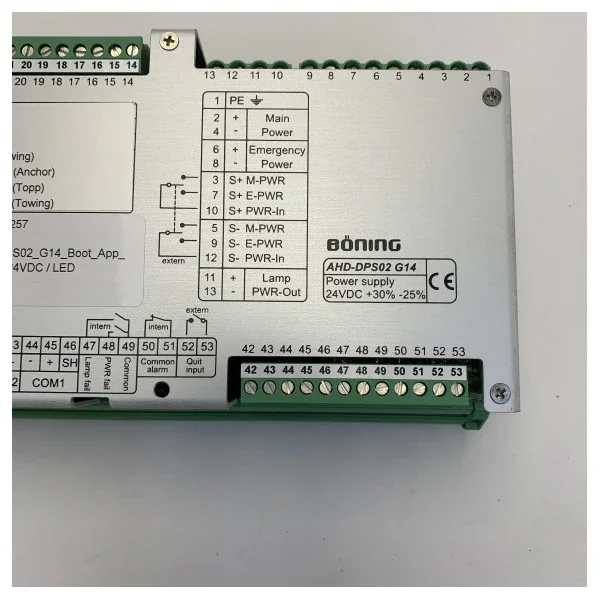

• Two Power Supplies: Equipped with a main and emergency power supply, which are continuously monitored. Switching between power supplies occurs automatically in the event of a failure, ensuring functionality is maintained.
• Three Status Indicators: Provides clear status indications for each light: Light off, Light on and Light faulty (e.g. flashing LED).
• Lifetime Monitoring: Records the operating hours and switching cycles per lamp circuit and provides an alarm notification when the end of life is reached (required for LED lamps).
