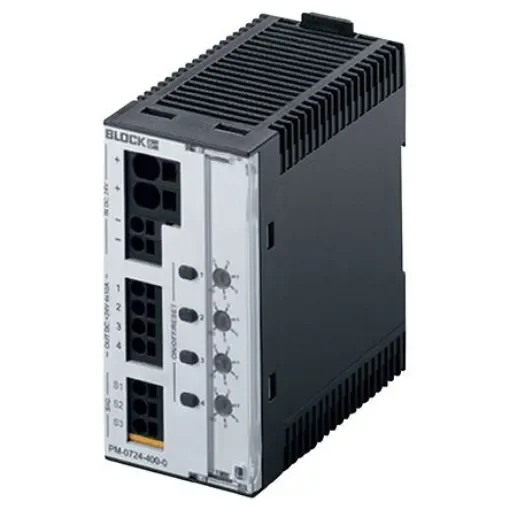

Block PM-0724-400-0

GL (Lloyds Registered) cURus, cULus. BLOCK Electronic Circuit Breakers. These new electronic circuit breakers from Block provide innovative advantages for optimised current. Power Compact range features a module with a width of just 42mm,which has eight electronically protected 24V output channels, each with a maximum rated current of 10A. Power Mini has 4 channels with identical functionality in a compact plastic housing. Benefits. Each Channels can be individually adjusted Different current per channel Remote restart of tripped channels possible Reliable tripping for high cable impedances LED operational On/Off/Tripped warning lights Alarm signal for tripped channel Remote switch-on / off of any channel Inrush current of system is distributed through sequential power-up of the channels Reduced width of the units Saves Din Rail space Cage Clamp connections 2, 4 or 8 channel versions available. Applications. Panel and Machine Builders Electrical Installations HVAC Installations Ship Building
