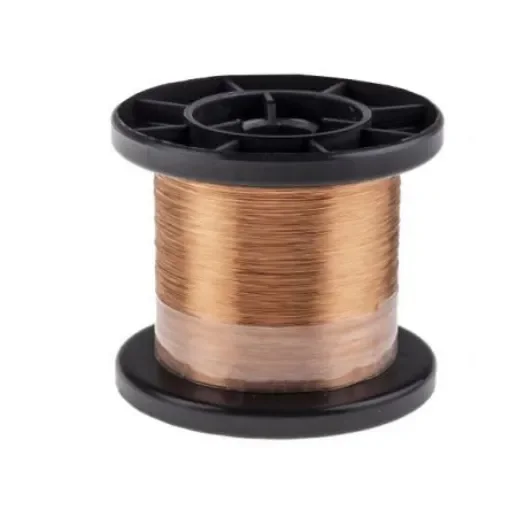

Block 0.63mm Enamelled Copper Wire, 22 AWG 140m Reel - CUL 500/0,63

Cross Sectional Area = 0.33 mm²
American Wire Gauge = 22 AWG
Core Strands = 1/0.63 mm
Insulation Material = PUR
Outer Diameter = 0.63mm
Length = 140m
Finish = Enamelled
Maximum Operating Temperature = +155°C
Shield Type = Unshielded
Series = CUL500
Cable Type = Single Core

Block Enamelled Copper Wire. From Block, a range of enamelled copper wire supplied on plastic spools. The single strand copper wire features a thin covering of enamel which acts as great insulation ensuring good chemical and thermal resistance. The enamel coating also prevents shorting. Enamelled copper wire or magnet wire is particularly useful for the production of tight coils. Block insulated copper wire is available in various diameters, AWG (American Wire Gauge) sizes and current ratings. Features and Benefits. • Excellent insulation properties • Copper possesses good chemical and corrosion protection • Long term thermal resistance • Solderable. Applications. Enamelled single strand copper conductors are utilised in a wide range of electronic manufacturing. The most common are. • Motor coil production • Transformer winding • Inductors for electronics • Relay coils • Speaker coils • Potentiometers
