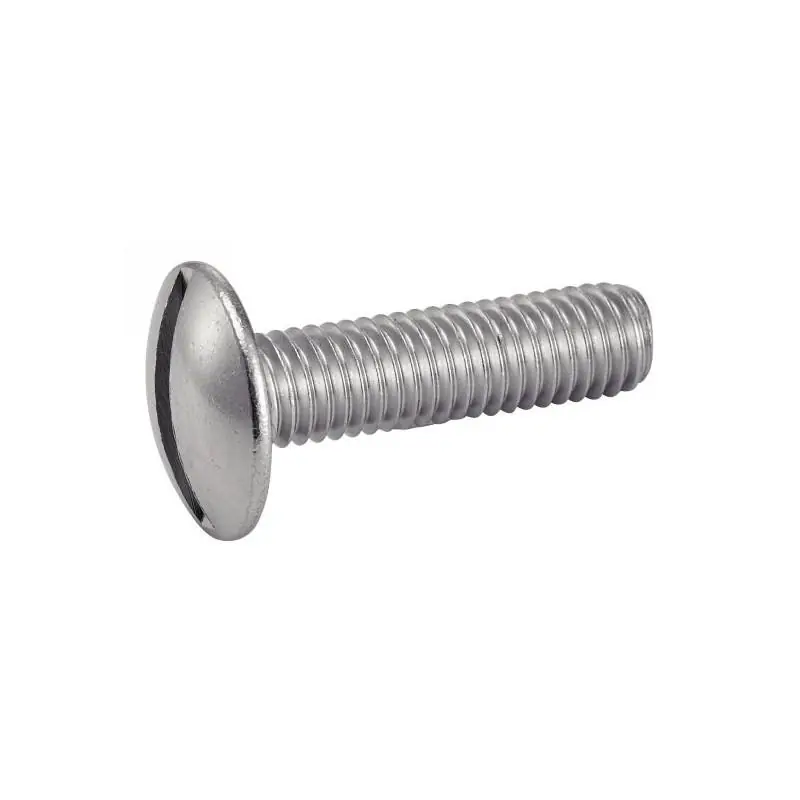

Key Features:
- Constructed from Marine Grade A4 Stainless Steel 316, offering superior corrosion resistance.
- Complies with the NFE 25-129 standard, ensuring professional quality and easier identification among similar products.
- Available in multiple diameters and lengths to suit various applications.
Technical Specifications:
| Diameter (d) | Length (L) | Thread Pitch | Minimum Thickness (t) | k (mm) | n (mm) | d2 (mm) |
|---|
| M4 | Varies | 0.7 | 1 | 2.2 | 1.50 | 10 |
| M5 | Varies | 0.8 | 1.2 | 2.7 | 1.50 | 12.5 |
| M6 | Varies | 1 | 1.5 | 3.3 | 1.90 | 15 |
| M8 | Varies | 1.25 | 2 | 4.4 | 2.31 | 20 |
Materials:
- Marine Grade A4 Stainless Steel 316, known for its high corrosion resistance, especially in acidic and chlorinated environments.
Dimensions:
- Diameter (d): M4, M5, M6, M8
- Length (L): Customizable based on selection
- Thread Pitch: 0.7 mm (M4), 0.8 mm (M5), 1 mm (M6), 1.25 mm (M8)
- Minimum Thickness (t): 1 mm (M4), 1.2 mm (M5), 1.5 mm (M6), 2 mm (M8)
- k (mm): 2.2 (M4), 2.7 (M5), 3.3 (M6), 4.4 (M8)
- n (mm): 1.50 (M4), 1.50 (M5), 1.90 (M6), 2.31 (M8)
- d2 (mm): 10 (M4), 12.5 (M5), 15 (M6), 20 (M8)
Compatibility Information:
- Suitable for applications requiring high corrosion resistance, such as in the cellulose industry, food industry, and shipbuilding industry.
Additional Details:
- A4 grade steels, alloyed with molybdenum, are "acid-resistant" and provide better corrosion resistance.
- A4 is frequently used in the food industry and the shipbuilding industry.
