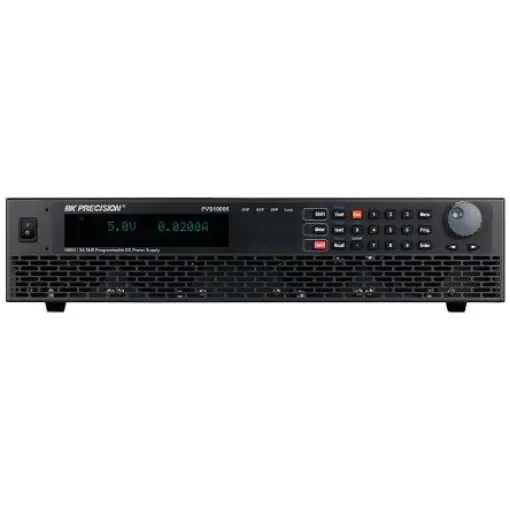

BK Precision PVS Series Digital Bench Power Supply, 1000V, 5A, 1-Output, 5kW - PVS10005

User manual, power cord, test report ; certificate of calibration. 3. B ;K Precision Model PVS10005 High Power Programmable DC Power Supply. B ;K Precision model PVS10005 offers clean output power up to 5.1 kW, excellent regulation and fast transient response time characteristics in an industry-leading 2U package. Features include high-programming resolution, multiple remote interfaces for test systems and a built-in SAS (solar array simulator) function to generate PV (photovoltaic) I-V curves. The low-noise characteristic of the PVS10005 makes it an instrument of choice for motor inverter testing. Features and Benefits. Compact, high power density, 2U package Output up to 1000V/5A Convenient single-phase AC input configuration Bright VFD display High voltage and current resolution of 100 mV, 0.1 mA Fast transient response time of = 0.5 ms Adjustable voltage and current slope (rise and fall times) List mode: 9 user-defined programs with up to 100 programmable steps each Built-in SAS function for storage of up to 16 I-V curves with Voc, Isc, Vmp and Imp parameters and 1024-point table Standard USB (virtual COM), RS232, GPIB and LAN interfaces supporting SCPI commands External analog programming and monitoring interface LabVIEW driver and softpanel available for remote control, test sequence generation and datalogging. Areas of Application. Bench use ATE systems integration R ;D Design verification Production test High voltage testing Motor inverter testing
