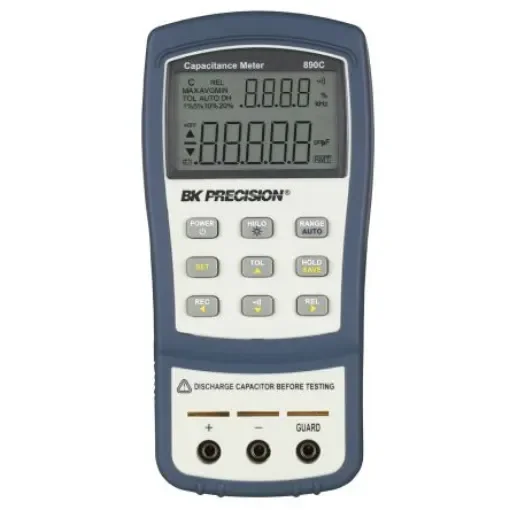

BK Precision BK890C Handheld Capacitance Meter 50mF

Maximum Capacitance Measurement = 50mF
Battery Life = 70 h
Battery Type = 9V
Bench/Handheld = Handheld
Display Type = LCD
Dimensions = 41 x 90 x 190mm
Weight = 350g
Height = 190mm
Length = 41mm
Maximum Operating Temperature = +40°C
Minimum Operating Temperature = 0°C
Width = 90mm

The 830C and 890C are 11,000-count handheld capacitance meters that measure capacitance up to 200 mF (50 mF for 890C). Straightforward to operate, these meters make measurements quickly and simplify the capacitance sorting process. Unlike other handheld instruments such as LCR meters that make measurements using an AC signal with a specific test frequency, they measures capacitance by applying a constant current that briefly charges, then discharges the connected capacitor.0.5% basic accuracy Measure capacitance up to 200 mF (50 mF for 890C) Bright LCD backlight Fast auto range design for rapid, easy component measurements USB (Virtual COM) interface SCPI compliant commands for remote communication Software for data logging and front panel emulation available as free download Applications: Capacitive component troubleshooting Electronic assembly Component sorting Quality control
