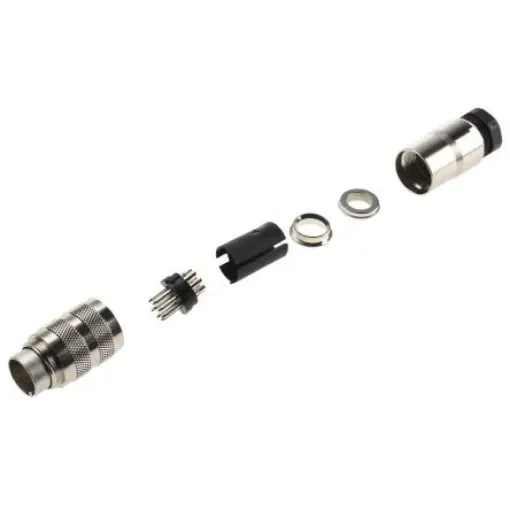

binder Circular Connector, 8 Contacts, Cable Mount, M16 Connector, Plug, Male, IP67, 423 Series - 99-5671-15-08

Binder Circular ConnectorThe Binder 423 series 8 DIN contacts, M8 male miniature circular connector has a plug-type connection. This cable mount connector has a voltage rating of 60V and a current rating of up to 5A per contact. This connector is made of polyamide with nickel plating and gold-plated brass contacts. It supports a screw-on locking mechanism for sturdy mating attenuation and reliable contact.Features and BenefitsStraight body orientation Solder termination Durability is greater than 500 mating cycles Shieldable Wire gauge is 18AWG Excellent EMC properties Internal strain relief with cable terminal Cable outlet ranges between 6mm and 8mm Operating temperature ranges between -30°C and 95°CApplicationsProcess control Industrial automation and instrumentation Commercial electronicsCertificationsIP67 rated IP68 rated UL approved AISG
