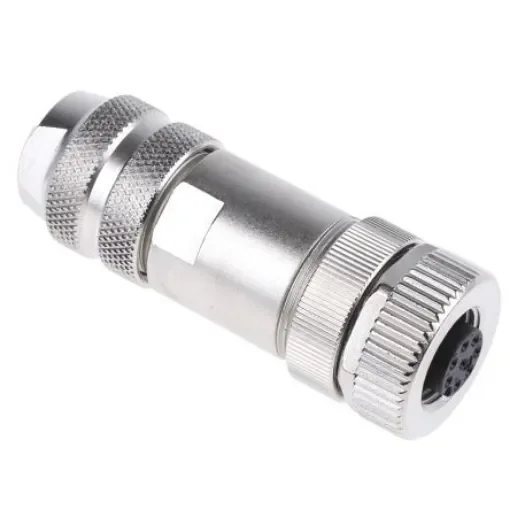

binder Circular Connector, 8 Contacts, Cable Mount, M12 Connector, Plug, Female, IP67, 713 Series - 99-1486-812-08

Number of Contacts = 8
Mounting Type = Cable Mount
Connector Size = M12
Plug/Socket = Plug
Contact Gender = Female
Termination Method = Screw
IP Rating = IP67
Current Rating = 2.0A
Series = 713
Voltage Rating = 60.0 V
Contact Plating = Gold
Minimum Operating Temperature = -40°C

Binder Sensor ConnectorThe Binder 713 series 8-contacts, M12 female sensor connector has a plug-type connection. This cable mount connector has a voltage rating of 60V and a current rating of up to 2A per contact. This connector is made of polyamide with a zinc die-cast nickel-plated housing and gold-plated bronze contacts. It has a threaded screw-on mating mechanism with coding to prevent incorrect mating along with M12 single-ended cable assemblies providing complete screening with earth tags in the cable braid.Features and BenefitsStraight body orientation Screw termination Durability is greater than 100 mating cycles Shieldable A-coded connector Wire gauge is 20AWG Static ring version with die-cast threaded ring Cable outlet ranges between 6mm and 8mm Operating temperature ranges between -40°C and 85°CApplicationsProcess control Industrial automation and instrumentation Commercial electronicsCertificationsIP67 rated UL approved
