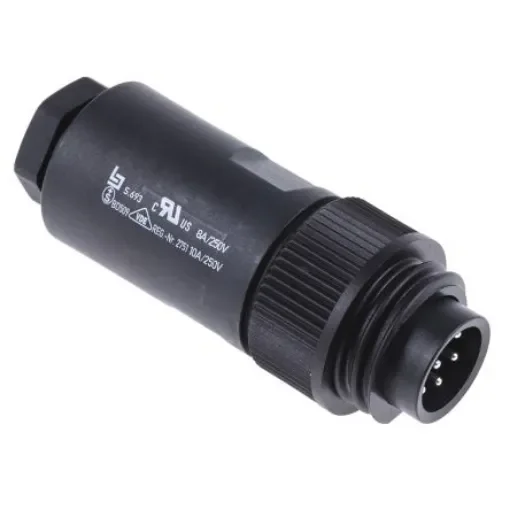

binder Circular Connector, 7 Contacts, Cable Mount, Socket, Male, IP67, 693 Series - 99-4217-110-07

Brand: binder

Durable binder circular connector with 7 contacts, IP67 rating, and reliable screw termination.

Manufacturer part number: 99-4217-110-07

Vendor: YACHTNEEDS-RS

Availability: In stock

€22.08 incl tax

Qty:

i h

Only Ships to: France, Monaco, Italy

For shipping outside these regions, please contact customer support.

Number of Contacts = 7
Mounting Type = Cable Mount
Plug/Socket = Plug
Contact Gender = Male
Termination Method = Screw
IP Rating = IP67
Current Rating = 10.0A
Body Orientation = Straight
Voltage Rating = 250.0 V
Shell Size = 29
Housing Material = Polymer
Contact Plating = Silver
Minimum Operating Temperature = -40°C

Binder Power ConnectorThe Binder 693 series 6+PE-contacts PG11 male power connector has socket type connection. This cable mount connector has a voltage rating of 2500V and a current rating of up to 10A per contact. This connector is made of polyamide with nickel plating and gold-plated brass contacts. It supports a screw-on locking mechanism for sturdy mating attenuation and reliable contact.Features and BenefitsStraight body orientation Screw termination Durability is greater than 500 mating cycles Not Shieldable Maximum wire gauge is 16AWG Shell size is 29mm Cable outlet ranges between 8mm and 10mm Operating temperature ranges between -40°C and 100°CApplicationsProcess control Industrial automation and instrumentation Commercial electronicsCertificationsIP67 rated UL approved ESTI+ VDE approved SEV
