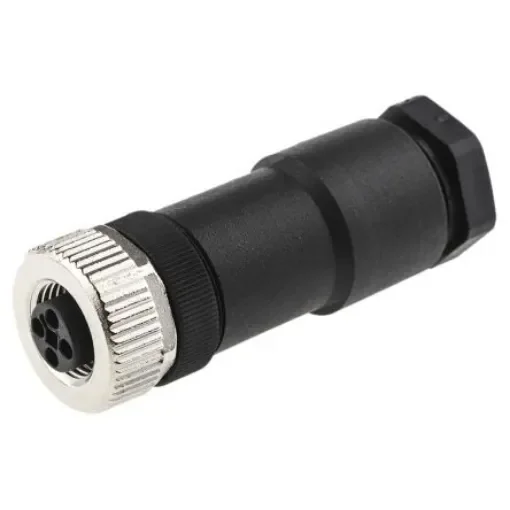

binder Circular Connector, 4 Contacts, Cable Mount, M12 Connector, Socket, Female, IP67, 813 Series - 99-0630-19-04

Number of Contacts = 4
Mounting Type = Cable Mount
Connector Size = M12
Plug/Socket = Socket
Contact Gender = Female
Termination Method = Screw
IP Rating = IP67
Current Rating = 12.0A
Series = 813
Coding = T
Mating Type = Threaded
Housing Material = Polymer
Contact Plating = Gold
Minimum Operating Temperature = -40°C

Binder series 813 M12 Power Connectors with T-Coding. "Binder series 813 M12 Power Connectors with T-Coding, T-coding eliminates the possibility of mismating with other M12 connectors. These M12 circular connectors are ideally suited for power supplies in automation network environments and many other applications, durable M12 circular connectors are rated at up to 12 A per contact and are IP67 rated and feature screw termination contacts. Accepts max. 16 AWG wires Cable diameters from 8 to 10 mm
