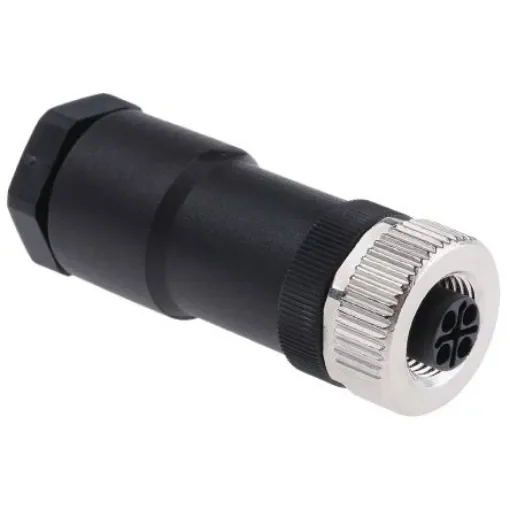

binder Circular Connector, 3 + PE Contacts, Cable Mount, M12 Connector, Socket, Female, IP67, 814 Series - 99-0690-19-04

Number of Contacts = 3 + PE
Mounting Type = Cable Mount
Connector Size = M12
Plug/Socket = Socket
Contact Gender = Female
Termination Method = Screw
IP Rating = IP67
Current Rating = 12.0A
Series = 814
Voltage Rating = 630.0 V
Mating Type = Threaded
Housing Material = Polymer
Pole Format = 3 + PE
Contact Plating = Gold
Minimum Operating Temperature = -40°C

Binder series 814 M12 power connectors with S-Coding. Binder series 814 M12 power connectors with S-Coding. The S-coding eliminates the possibility of mis-mating with other M12 connectors. These M12 connectors are ideally suited for power supply applications amongst others, durable circular connectors rated at up to 12 A per contact at a maximum 630 V are IP 67 rated and feature screw termination contacts. Accepts max. 16 AWG wires Cable diameters from 8 to 10 mm
