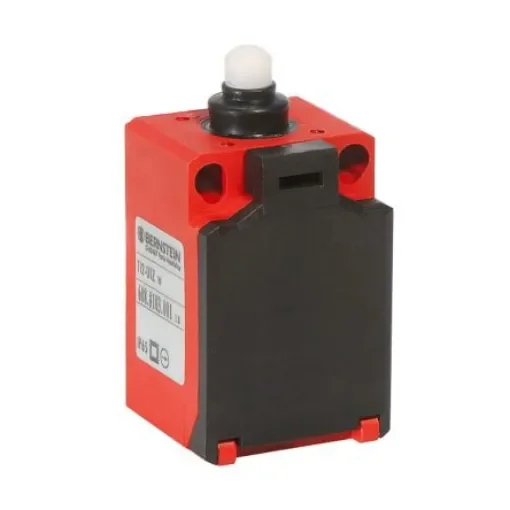

Bernstein AG TI2 Series Plunger Limit Switch, NC/NO, IP65, DPST, Thermoplastic Housing, 240V ac Max, 10A Max - 6088153002

Actuator Type = Plunger
Pole and Throw Configuration = DPST
Normal State Configuration = NC/NO
IP Rating = IP65
Maximum Current = 10A
Housing Material = Glass Fibre Reinforced Thermoplastic
Maximum AC Voltage = 240V
Maximum DC Voltage = 250V
Connection Type = M16
Series = TI2
Action Type = Slow Action, Snap Action
Length = 30mm
Width = 57mm
Mounting Orientation = ScrewCycles

Compact limit switches Type Ti2 Ideal for safety applications and position monitoring in confined spaces.Compact switch for safety or control applications in protection class IP 65 Optimised size while retaining tried-and-tested connection system Two-channel safety monitoring possible With captive snap-on cover 2 mm contact opening width of slow-action system conforming to EN 81-1 for lift construction Small hysteresis in snap action system Actuator can be repositioned by 4 x 90° Slow-action and snap-action contacts Versions: 1 NC / 1NO, 2 NC, 2 NO All NC contacts with in the circuit diagram are positively opening contacts Type: Zb (galvanically isolated changeover contact) Different actuators available Available with M12 connector AS-interface variants available
