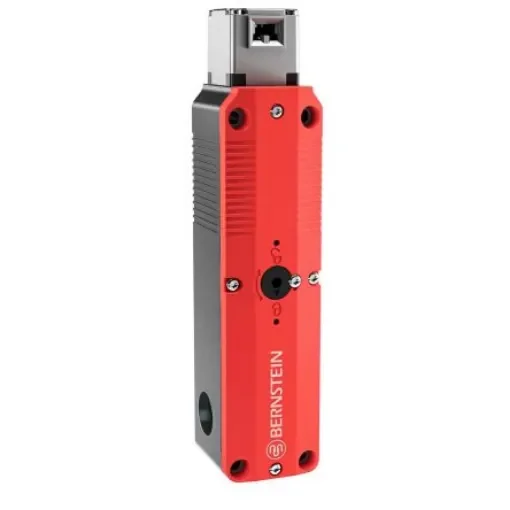

Bernstein AG SLC Safety Interlock Switch, 2NC + 1NC/1NO Actuator Included, Glass Fibre Reinforced Thermoplastic, Guard - 6018200015

Normal State Configuration = 2NC + 1NC/1NO
Lock Type = Guard Lock Interlock
Actuator Included = Yes
Maximum AC Voltage = 24V
Maximum DC Voltage = 24V
Connection Type = M20
Housing Material = Glass Fibre Reinforced Thermoplastic
IP Rating = IP67
Series = SLC
Minimum Operating Temperature = -25°C

Lightweight yet robust: Hybrid of metal and plastic Flexible contact assembly Integrated manual release Symmetrical design Five actuating positions Rotatable head (4x90°) Fail-safe guard locking system Optional emergency exit Optional emergency release M12 connector as an option Enclosure: Thermoplastic, glass fibre reinforced Cover: Thermoplastic, glass fibre reinforced Operating device: Metal Latching force: 1500 N Ambient temperature: -25 °C to + 55 °C Switching principle: 4 slow-action-contacts Contacts Rated operational voltage Ue: 240 V AC / 24 V DC Utilization category: AC-15, Ue / Ie 240 V / 1,5 A DC-13, Ue / Ie 24 V / 1,5 A, 250 V / 0,11 A Solenoid Operating voltage: 24 V AC / DC or 110 V AC or 230 V AC Safety data B10D: 2 x106 cycles
