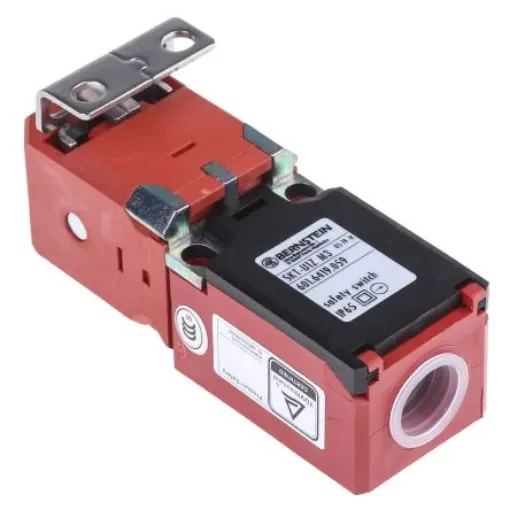

Bernstein AG SKT Safety Interlock Switch, 1NC/1NO, Keyed Actuator Included, Glass Fibre Reinforced Thermoplastic - 6016419059
Ensure safety with the Bernstein AG SKT Safety Interlock Switch featuring a keyed actuator and robust design.
Manufacturer part number: 6016419059
GTIN: 4024337024245
Lock Style = Keyed
Normal State Configuration = 1NC/1NO
Actuator Included = Yes
Safety Contacts = NO/NC
Maximum AC Voltage = 240V
Maximum DC Voltage = 250V
Connection Type = M16
Housing Material = Glass Fibre Reinforced Thermoplastic
IP Rating = IP65
Number of Head Directions = 4
Series = SKT
Length = 94.25mm
UL, CSA and BG-approved. SKI/SKT Safety Switch. Insulation encapsulated Fastening dimension according to EN 50047 Actuation in 8 directions, horizontal and vertical Actuator 3-way coded Positive break NCC, electrically isolated Protection rating IP65. SKI. Dimensions: 100 x 31 x 30.5 mm 3 output contacts max. SKT. Dimensions: 83 x 30 x 27 mm 2 output contacts max.
