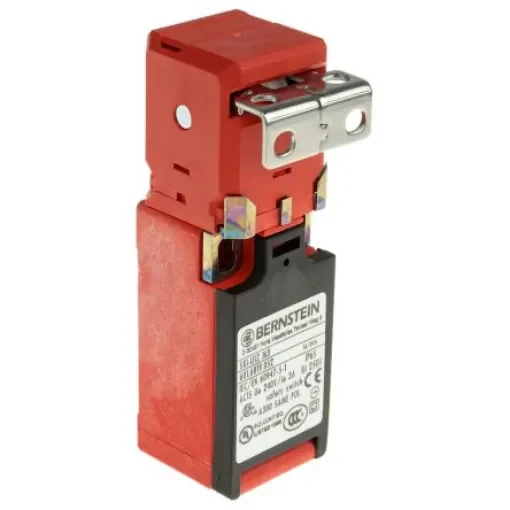

Bernstein AG SKI Safety Interlock Switch, 1NC/1NO, Keyed Actuator Included, Glass Fibre Reinforced Thermoplastic - 6016819052

Lock Style = Keyed
Normal State Configuration = 1NC/1NO
Actuator Included = Yes
Safety Contacts = NO/NC
Maximum AC Voltage = 240V
Connection Type = M20
Housing Material = Glass Fibre Reinforced Thermoplastic
IP Rating = IP65
Number of Head Directions = 4
Series = SKI
Minimum Operating Temperature = -30°C

UL, CSA and BG-approved. SKI/SKT Safety Switch. Insulation encapsulated Fastening dimension according to EN 50047 Actuation in 8 directions, horizontal and vertical Actuator 3-way coded Positive break NCC, electrically isolated Protection rating IP65. SKI. Dimensions: 100 x 31 x 30.5 mm 3 output contacts max. SKT. Dimensions: 83 x 30 x 27 mm 2 output contacts max.
