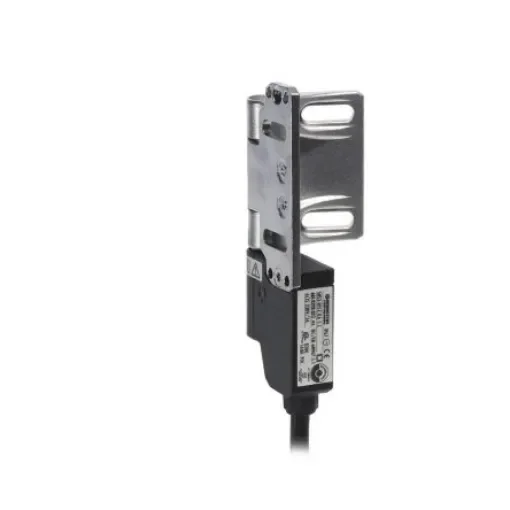

Bernstein AG SHS3 Series Limit Switch, 2NC/1NO, IP69K, Polybutylene Terephthalate (PBT) Housing - 6019390065

Bernstein AG Limit SwitchThe Bernstein AG SHS3 series is a NO/2NC configuration switch. It has a freely and repeatedly adjustable switching point by the user over a range of 270°. The switch is flexible and safe for hinged protective equipment. The load-bearing hinge is made from stainless steel or die-cast zinc while the switching system is housed in a high-quality plastic enclosure. It required 230VAC and 24VDC rated operating voltage.Features and Benefits• Mounting between sections while maintaining the required finger guard gap • Operating temperature ranges between -25°C and 70°C. • Right and left hinged systems for optimum cable routing • Slots for mounting on sections and welded structures • Uncomplicated readjustment even of set switching point by ±1.5° because of an integrated fine adjustment systemApplications• Food and beverage industryCertifications• B300 • CCSAUS • DGUV • DIN EN 60947-1 • DIN EN 60947-5-1 • DIN EN ISO 13849-1 • IEC 60947-1 • IEC 60947-5-1 • VDE 0660 T100 • VDE 0660 T200 IP69 rated
