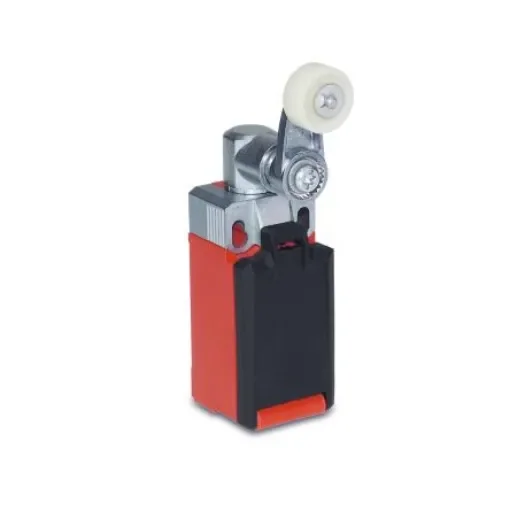

Bernstein AG IN65 Series Roller Lever Limit Switch, NC/NO, IP66, IP67, DPST, Thermoplastic Housing, 240V ac Max, 5A Max - 6083000236

Actuator Type = Roller Lever
Pole and Throw Configuration = DPST
Normal State Configuration = NC/NO
IP Rating = IP66, IP67
Maximum Current = 5A
Housing Material = Glass Fibre Reinforced Thermoplastic
Maximum AC Voltage = 240V
Maximum DC Voltage = 24V
Connection Type = M20
Series = IN65
Action Type = Slow Action, Snap Action
Length = 31mm
Width = 108mm
Mounting Orientation = ScrewCycles

The IN65 switches can be used on safety facilities and for position monitoring in virtually any industrial application. The modularity allows for great flexibility, enabling individual customer solutions to be realised. Due to the metal actuator locking and mounting clip the product is particularly robust. The IN65 ideally combines the economic advantages of a plastic bodied switch, with the sturdiness of a metal bodied one.Standard switches Modular design High reliability at low currents (1 mA) Tool-free turning and changing of actuator Metal actuator locking Metal mounting clip Hinged snap-on cover Slow-action and snap-action contacts Mechanical service life: up to 30 million switching cycles Different actuators available Adjustable actuator elements (8 x 45° repositioning) Adjustable lever Rotatable lever
