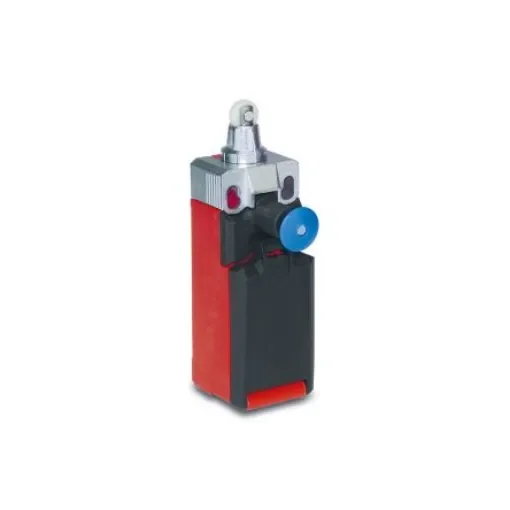

Bernstein AG I81 Series Roller Limit Switch, NC/NO, IP66, IP67, DPST, Thermoplastic Housing, 240V ac Max, 5A Max - 6083000243
The I81 Series Roller Limit Switch ensures reliable operation with a robust design and flexible mounting options.
Manufacturer part number: 6083000243
Actuator Type = Roller
Pole and Throw Configuration = DPST
Normal State Configuration = NC/NO
IP Rating = IP66, IP67
Maximum Current = 5A
Housing Material = Glass Fibre Reinforced Thermoplastic
Maximum AC Voltage = 240V
Maximum DC Voltage = 24V
Connection Type = M20
Series = I81
Action Type = Slow Action, Snap Action
Length = 31mm
Width = 101mm
Mounting Orientation = ScrewCycles
The modularity of the I81 allows for great flexibility, enabling individual customer solutions to be realised. Due to the metal actuator locking and mounting clip the product is particularly robust.Integrated latch function: After actuation manually reset by pulling the blue button necessary Modular design High reliability at low currents (1 mA) Tool-free turning and changing of actuator elements Metal actuator locking Metal mounting clip Hinged snap-on cover Slow-action and snap-action contacts Mechanical service life: 100.000 switching cycles Different actuators available Adjustable actuator elements (8 x 45° repositioning) Adjustable lever Rotatable lever
