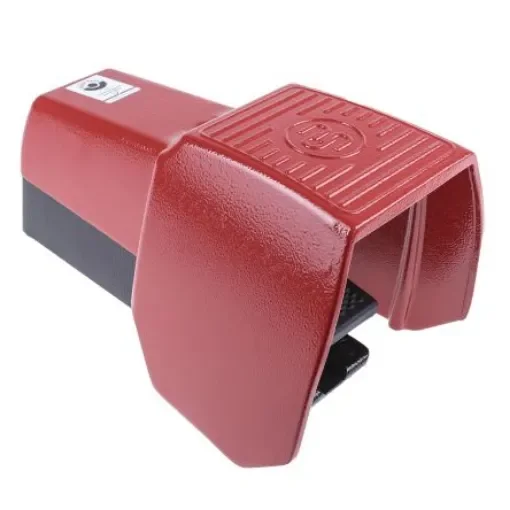

Bernstein AG Foot Switch Momentary Foot Switch - Aluminium Case Material, SPDT - 6061600006

Contact Configuration = SPDT
Switch Operation = Momentary
Case Material = Aluminium
Switch Environment = Foot Switch
IP Rating = IP65
Guard Cover = Yes
Colour = Red
Height = 146mm

Bernstein AG Foot SwitchThe Bernstein AG 606 series single-pedal, momentary contact guarded foot switch has single normally open and single normally closed as normal state configuration. It is red and is made of aluminium. This foot switch has a rated insulation voltage of 400VAC, rated operational voltage of 240V and conventional thermal current of 10A.Features and BenefitsDPST pole and throw configuration Safety stay put with manual locking release Metal encapsulated housing AL safety cover for accident prevention Foot pedal is made of thermoplastic Latching foot pedal 4 screw connections (M3,5) Cable entry 1 x M20 x 1.5ApplicationsCoil winding machines Photo lab equipment Sewing machines Conveyor belts Imprinting equipment CNC machinesCertificationsIP65 rated CCC certified DGUV certified CSA certified UL approved BG certified DIN EN 60947-1 IEC 60947-1 DIN EN 60947-5-1 IEC 60947-5-1
