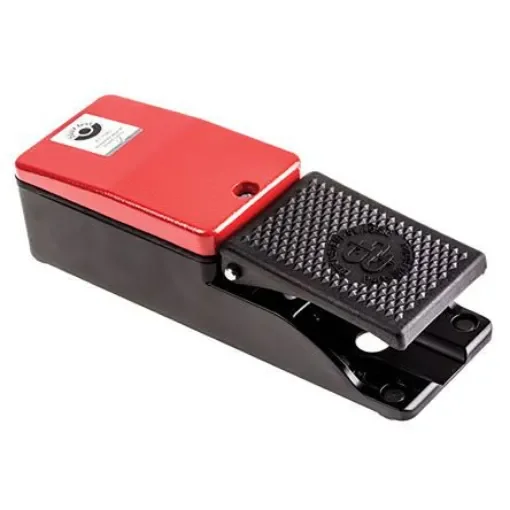

Bernstein AG Foot Switch Momentary Foot Switch - Aluminium Case Material, 2NO/2NC - 6061200003

Contact Configuration = 2NO/2NC
Switch Operation = Momentary
Case Material = Aluminium
Switch Environment = Foot Switch
IP Rating = IP65
Guard Cover = No
Depth = 60mm

Bernstein AG Foot SwitchThe Bernstein AG 606 series single-pedal, momentary contact guarded foot switch has double normally open and double normally closed as normal state configuration. It is red and made of aluminium. This foot switch has a rated insulation voltage of 400VAC, rated operational voltage of 240V and conventional thermal current of 10A.Features and Benefits4PST pole and throw configuration Safety stay put with manual locking release Metal encapsulated housing AL safety cover for accident prevention Foot pedal is made of thermoplastic Latching foot pedal 8 screw connections (M3,5) Cable entry M20 x 1.5ApplicationsCoil winding machines Photo lab equipment Sewing machines Conveyor belts Imprinting equipment CNC machinesCertificationsIP65 rated CCC certified DGUV certified CSA certified UL approved BG certified DIN EN 60947-1 IEC 60947-1 DIN EN 60947-5-1 IEC 60947-5-1
