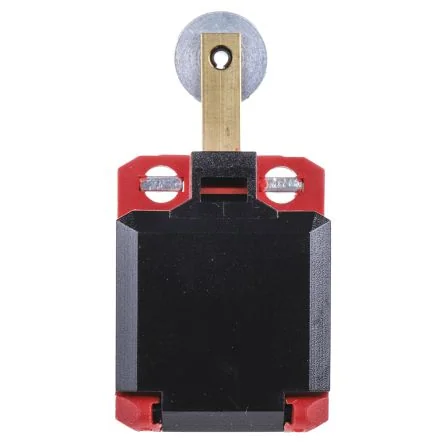

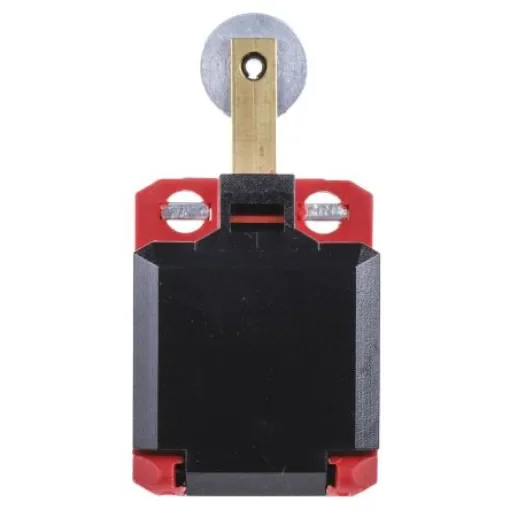

Bernstein AG C2 Series Roller Interlock Switch, NO/NC, IP20, Glass Reinforced Plastic (GRP) Housing - 6008366014
Compact and reliable roller interlock switch for safety applications with NO/NC configuration.
Manufacturer part number: 6008366014
GTIN: 5060641249119
Actuator Type = Roller
Normal State Configuration = NO/NC
IP Rating = IP20
Housing Material = Glass Reinforced Plastic (GRP)
Connection Type = Screw
Series = C2
Length = 44mm
Depth = 21mm
Mounting Orientation = FrontCycles
UL, CSA. Combi C2 — compact limit switch, plastic. Smallest switch available for safety applications 3 different switch functions All N/C contacts force separated (symbol representation arrow in circle) Two-channel safety monitoring possible Galvanic isolation of contact bridges, shape Zb 2 mm contact gap for creeping systems in accordance with EN 81-1 for lift applications 2 mounting positions Protection rating IP30 Loss-proof snap lid
