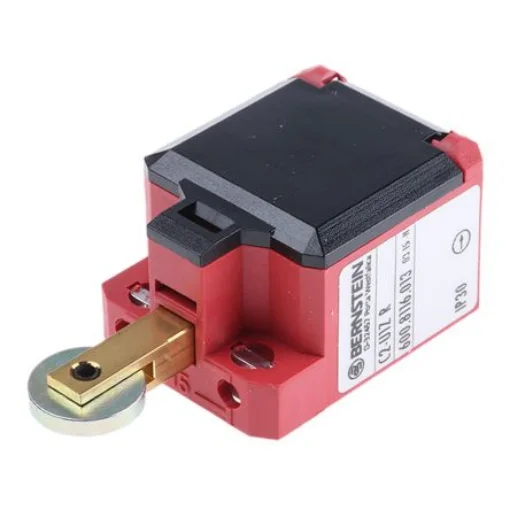

Bernstein AG C2 Series Roller Interlock Switch, NO/NC, IP20, Glass Reinforced Plastic (GRP) Housing - 6008116013
The Bernstein AG C2 Series Roller Interlock Switch offers reliable NO/NC functionality in a compact design.
Manufacturer part number: 6008116013
GTIN: 4024337022425
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Actuator Type = Roller
Normal State Configuration = NO/NC
IP Rating = IP20
Housing Material = Glass Reinforced Plastic (GRP)
Connection Type = Screw
Series = C2
Length = 44mm
Width = 26mm
Mechanical Life = 3000000Cycles
UL, CSA. Combi C2 — compact limit switch, plastic. Smallest switch available for safety applications 3 different switch functions All N/C contacts force separated (symbol representation arrow in circle) Two-channel safety monitoring possible Galvanic isolation of contact bridges, shape Zb 2 mm contact gap for creeping systems in accordance with EN 81-1 for lift applications 2 mounting positions Protection rating IP30 Loss-proof snap lid
