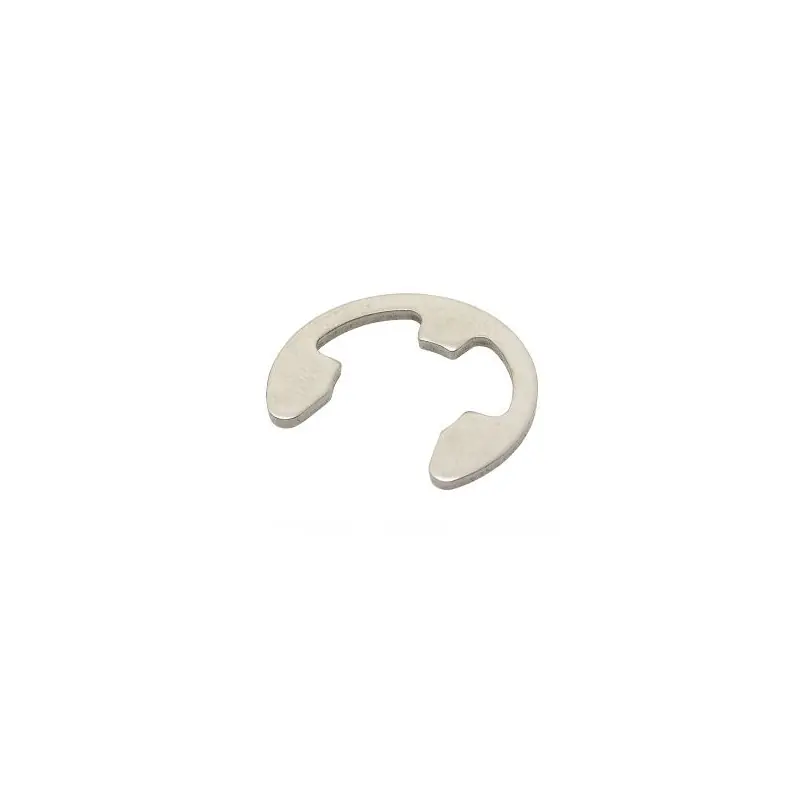

Key Features:
- Radial mounting design for secure shaft retention.
- Made from stainless steel A4 (AISI 316 L) for enhanced corrosion resistance.
- Complies with DIN 6799 standards for consistent quality and performance.
Technical Specifications:
- Material: Stainless steel A4 (AISI 316 L)
- Hardness:
For diameters from 1.5 to 3.2 mm: 1176 ÷ 1274 N/mm²
For diameters from 4 to 6 mm: 981 ÷ 1079 N/mm²
For diameters from 7 to 19 mm: 882 ÷ 981 N/mm²
- Surface Finish:
Electrolytic zinc plating for diameters from 1.5 to 30 mm.
Self-finished and oiled for diameters from 1.2 to 1.9 mm and 8 to 30 mm.
Phosphated and oiled for diameters from 2.3 to 7 mm.
Materials:
- Stainless steel A4 (AISI 316 L)
Dimensions:
- Available in various diameters ranging from 1.2 mm to 19 mm.
- Specific dimensions vary based on diameter; refer to the manufacturer's technical data sheet for detailed measurements.
Compatibility Information:
- Designed for use with shafts of corresponding diameters as specified in the DIN 6799 standard.
Additional Details:
- Retaining rings are radially mounted onto the shaft groove, providing a secure fit.
- Assembly can be facilitated using appropriate assembly pliers.
- Surface finishes can be customized upon request for specific applications.
