Key Features:
- Constructed from high-quality stainless steel A2 (304 grade), offering excellent corrosion and heat resistance.

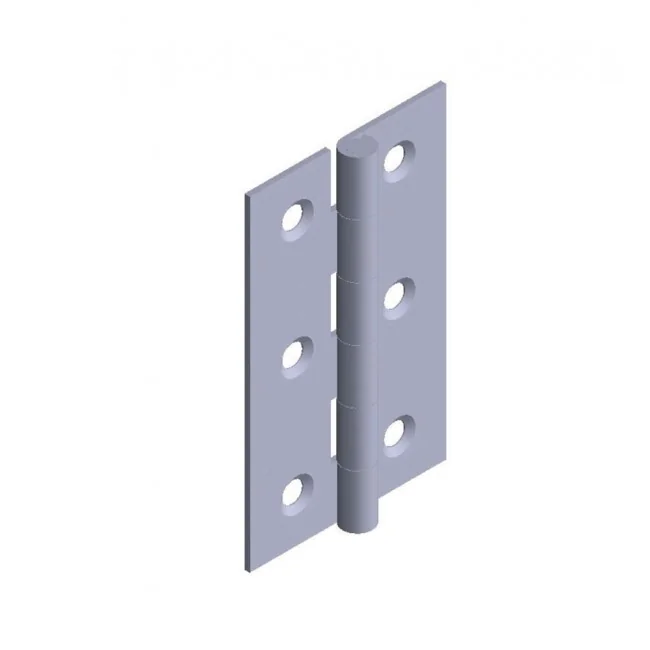

- Features a rolled knot design, providing a discreet and secure pivot axis for doors and windows.
- Countersunk holes for a flush installation, enhancing aesthetic appeal.
Technical Specifications:
- Dimensions: 75 mm (length) x 50 mm (width)
- Thickness: 2 mm
- Countersink Diameter: 6 mm
- Screw Hole Diameter: 5.7 mm
- Number of Holes: 6
- Pin Diameter: 11 mm
- Pin Length: 55.4 mm
Materials:
- Made from stainless steel A2 (304 grade), known for its high corrosion resistance and good heat resistance.
Dimensions:
- Length: 75 mm
- Width: 50 mm
- Thickness: 2 mm
Compatibility Information:
- Suitable for doors and windows requiring a robust and discreet hinge solution.
- Ideal for applications where a flush installation is desired.
Additional Details:
- The rolled knot design ensures that when the door is closed, the hinge is nearly invisible, providing a clean and streamlined appearance.
- The countersunk holes allow for a flush installation, enhancing the overall aesthetic of the door or window.
