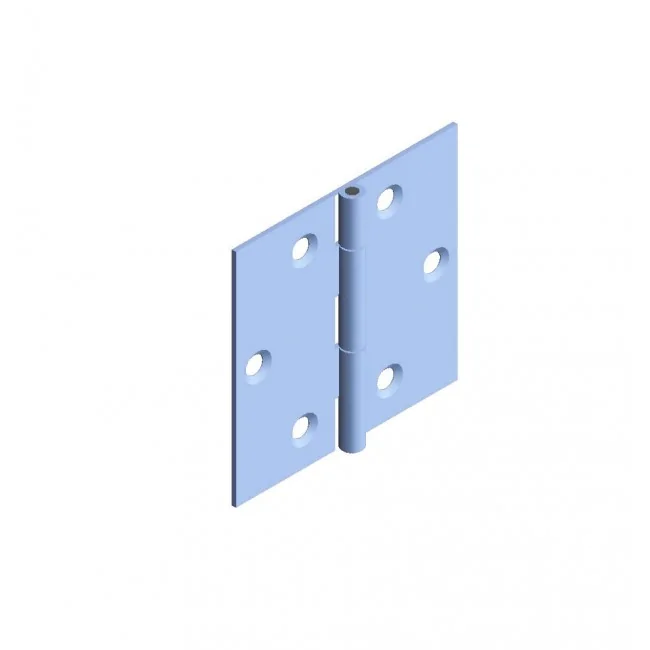

The Square Hinge with Rolled Knot Stainless Steel is a high-quality hinge designed for durability and aesthetic appeal. Crafted from A2 grade stainless steel (also known as 304 stainless steel), it offers excellent corrosion resistance and heat resistance, making it suitable for various applications, including kitchen equipment and outdoor settings.
- Rolled Knot Design: The hinge features a rolled knot mechanism, providing a discreet and robust pivot axis when the door is closed. This design minimizes the risk of the hinge getting caught or damaged.
- Material: Constructed from A2 grade stainless steel, ensuring high corrosion resistance and good heat resistance.
- Mounting Style: Designed to be mounted on the outside of the door and frame, with the rolled knot fitting into the corresponding part, creating a secure and discreet pivot point.
Technical Specifications
| Size (mm) | Thickness (mm) | Number of Holes |
|---|
| 30 x 30 | 0.8 | 4 |
| 40 x 40 | 0.9 | 6 |
| 50 x 50 | 0.9 | 6 |
Materials
- Stainless Steel A2: Contains approximately 18% chromium and 8% nickel, providing high corrosion resistance and good heat resistance.
Dimensions
- Available Sizes: 30 x 30 mm, 40 x 40 mm, and 50 x 50 mm.
- Thickness Options: 0.8 mm, 0.9 mm, and 1.0 mm, depending on the size.
- Number of Holes: 4 holes for 30 x 30 mm size; 6 holes for 40 x 40 mm and 50 x 50 mm sizes.
Compatibility Information
Ensure that the hinge size and thickness are compatible with the door and frame dimensions. The rolled knot design is suitable for applications where a discreet and robust hinge is desired.
