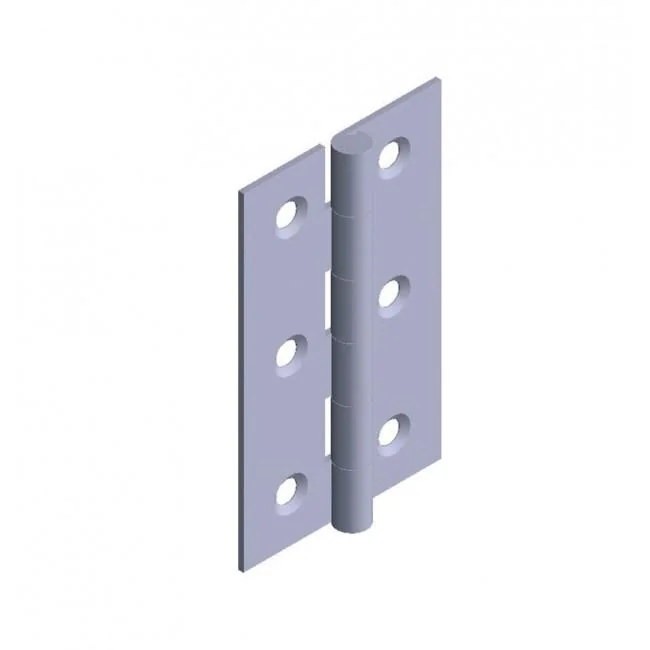

This 35x22 mm rectangular hinge features a rolled knuckle design, providing a discreet and durable pivot mechanism for doors and windows. Made from high-quality stainless steel A2 (304 grade), it offers excellent corrosion and heat resistance, making it suitable for various applications, including marine environments.
- Rolled Knuckle Design: The hinge consists of two parts, each with a rolled knuckle that fits into the other, creating a robust and discreet pivot axis.
- Countersunk Holes: Equipped with countersunk holes for a flush installation, enhancing the hinge's aesthetic appeal.
- Corrosion Resistance: Constructed from stainless steel A2, ensuring high resistance to corrosion and heat.
Technical Specifications
- Material: Stainless Steel A2 (304 Grade)
- Dimensions:
- Length (A): 35 mm
- Width (B): 22 mm
- Thickness (C): 2.4 mm
- Pin Diameter (D): 0.8 mm
- Screw Hole Diameter: 2 mm
- Countersink Diameter: 4 mm
- Design: Rolled knuckle with countersunk holes
- Finish: Polished stainless steel
Materials
Stainless Steel A2 (304 Grade): Contains approximately 18% chromium and 8% nickel, providing high corrosion resistance and good heat resistance.
Compatibility Information
This hinge is suitable for doors and windows made of various materials, including wood and metal. Its design ensures a secure and smooth operation, making it ideal for both residential and commercial applications.
