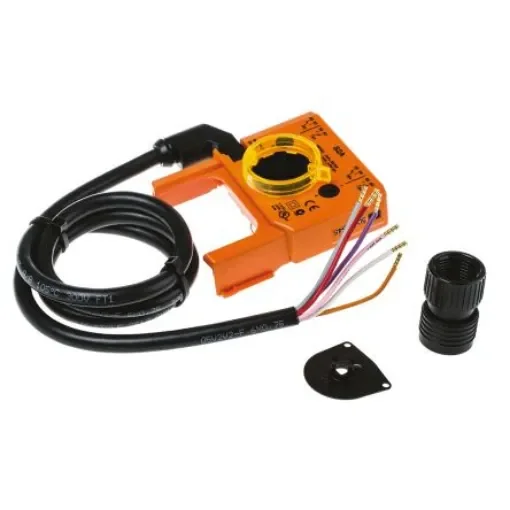

Belimo Actuator Switch - S2A
The Belimo actuator switch features adjustable points and low power consumption for efficient HVAC control.
Manufacturer part number: S2A
Belimo ActuatorThe Belimo 2 X SPDT actuator switch has an adjustable switch point. The auxiliary switch is mounted onto the direct-coupled actuator. This switch has an adjustable U-clamp, which accepts round or square shafts and is a rotary/louvre actuator. It is compatible with all leading makes of HVAC controls. This actuator operates on stall torque technology, which does not require end switches.Features and BenefitsAmbient temperature ranges between -30°C and 50°C Cable length is 1m Direction change switch Low power consumption Maintenance free Minimum 60000 operations Pushbutton manual override Rated impulse Voltage 4kV Switching capacity is between 1mA and 3A at 250VACApplicationsCan be used with LM, NM, SM and GM damper actuatorsCertificationsIP54 rated NEMA2 UL Enclosure Type 2
