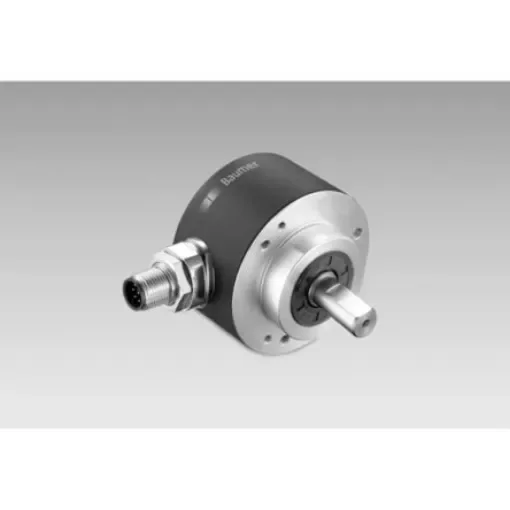

Baumer EAM580 Series Magnetic Absolute Encoder, Solid Type, 10mm Shaft - EAM580R-SC0.7NC4.A36A1.A

Manufacturer: Baumer

High-performance magnetic absolute encoder with a 10mm solid shaft for precise measurements.

Manufacturer part number: EAM580R-SC0.7NC4.A36A1.A

Vendor: YACHTNEEDS-RS

€673.33

Qty:

i h

Ships to: France, Monaco

Encoder Technology = Magnetic
Series = EAM580
Maximum Revolutions = 6000rpm
Shaft Type = Solid
Shaft Diameter = 10mm
Resolution = 12 bit
IP Rating = IP67
Interface = Analog 4-20 mA
Overall Width = 58mm
Minimum Operating Temperature = -40°C
Mounting Type = Clamping Flange°C
Connection Type = Flange connector M12

Solid shaft with clamping flange.Encoder single- or multiturn / Analogue High resistance to shock and vibrations Protection against corrosion Wire cross section 0.5 mm² Teach input for adjustment of measuring range
